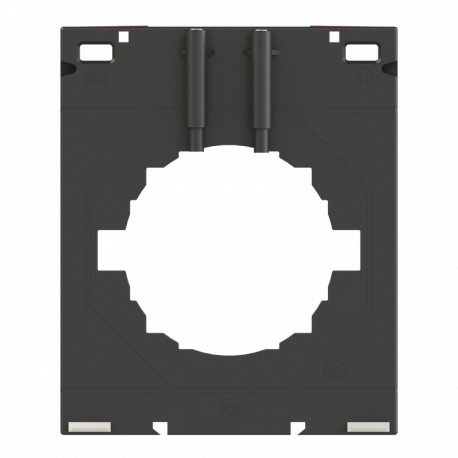

ABB 2CSG280475R1000 2CSG280475R1000 ABB Intens transformer. CT1M-6 1000 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSG280475R1000 ABB Intens transformer. CT1M-6 1000

2CSG280475R1000

280475

ABB

1 Pcs.

Intens transformer. CT1M-6 1000 CT1M-6 1000 Current Transformer

Automation > Current transformer
AER and Transformers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 2CSG280475R1000 is an intensity transformer built to handle heavy electrical currents in industrial switchboards and power distribution centers. These devices scale high primary amperages down to standardized values to protect and feed sub-station metering hardware.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Cable Use: Cable and Horizantal/Vertical Bar
  • Rated Primary Current (I pn ): 1000 A
  • Rated Secondary Current (I sn ): 5 A
  • Current Limit Function: FS 5
  • Accuracy: ±0.5%
  • Number of Inputs: Primary 1
  • Cable Cross-Section: 65 mm
  • Rated Cross-Section: 80x10 mm
  • Rated Frequency (f): 50 … 60 Hz
  • RoHS Declaration: 9AKK108470A7636
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20250213
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: True - contains substances > 0.1 mass percentage
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

More info

▲
Technical
Cable UseCable and Horizantal/Vertical Bar
Rated Primary Current (Ipn)1000 A
Rated Secondary Current (Isn)5 A
Current Limit FunctionFS 5
Accuracy±0.5%
Number of InputsPrimary 1
Cable Cross-Section65 mm
Rated Cross-Section80x10 mm
60x30 mm
50x50 mm
Electrical
Rated Frequency (f)50 … 60 Hz
Material Compliance
RoHS Declaration9AKK108470A7636
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250213
REACH Declaration9AKK108467A9482
REACH InformationTrue - contains substances > 0.1 mass percentage
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP20
Dimensions
Product Net Width104 mm
Product Net Height126 mm
Product Net Depth / Length45 mm
Product Net Weight0.78 kg
Dimension Diagram9AKK108470A9326
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.78 kg
E-Number (Finland)6719106
Replacement Product ID (NEW)2CSG421190R1101
Certificates and Declarations
Declaration of Conformity - CE9AKK108470A7636
Installation
Instructions and Manuals9AKK108470A3838
Mounting TypeThrough Primary
External Classifications and Standards
ETIM 9EC002048 - Current transformer
ETIM 10EC002048 - Current transformer

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
