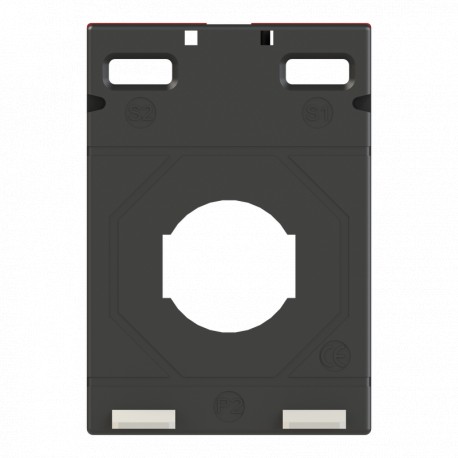

2CSG280305R1000 ABB Intens transformer. CT1M-2 400
2CSG280305R1000
280305
ABB
1 Pcs.
Intens transformer. CT1M-2 400
CT1M-2 400 Current Transformer
Automation > Current transformer
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
2CSG280305R1000 supplied by ABB is an intensity transformer designed to interface with cables or horizontal bars for precise current scaling in electrical panels.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Cable Use: Cable and Horizantal Bar
- Rated Primary Current (I pn ): 400 A
- Rated Secondary Current (I sn ): 5 A
- Current Limit Function: FS 5
- Accuracy: ±0.5%
- Number of Inputs: Primary 1
- Cable Cross-Section: 21 mm
- Rated Cross-Section: 20x10 mm
- Rated Frequency (f): 50 … 60 Hz
- RoHS Declaration: 9AKK108470A7636
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20250213
- REACH Declaration: 9AKK108467A9482
- REACH Information: True - contains substances > 0.1 mass percentage
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
More info
▲| Technical | |
|---|---|
| Cable Use | Cable and Horizantal Bar |
| Rated Primary Current (Ipn) | 400 A |
| Rated Secondary Current (Isn) | 5 A |
| Current Limit Function | FS 5 |
| Accuracy | ±0.5% |
| Number of Inputs | Primary 1 |
| Cable Cross-Section | 21 mm |
| Rated Cross-Section | 20x10 mm |
| Electrical | |
| Rated Frequency (f) | 50 … 60 Hz |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A7636 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250213 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Height | 65 mm |
| Product Net Depth / Length | 40 mm |
| Product Net Weight | 0.33 kg |
| Dimension Diagram | 9AKK108470A9294 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.33 kg |
| E-Number (Finland) | 6719089 |
| Replacement Product ID (NEW) | 2CSG225835R1101 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108470A7636 |
| Installation | |
| Instructions and Manuals | 9AKK108470A3838 |
| Mounting Type | Through Primary |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
