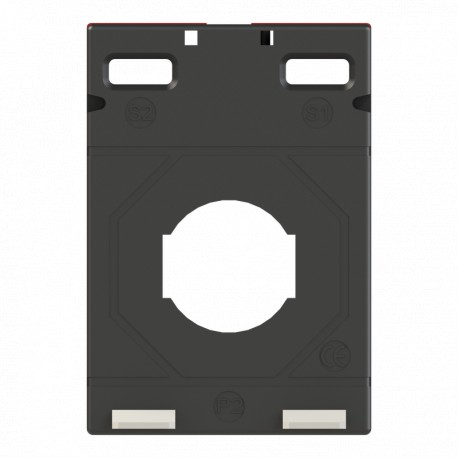

2CSG280255R1000 ABB Intens transformer. CT1M-2 100
2CSG280255R1000
280255
ABB
1 Pcs.
Automation > Current transformer
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 2CSG280255R1000 is a measurement current transformer used in industrial electrical installations to scale high primary currents down to safe, standardized values. These components are vital for feeding measuring instruments, control units, and protection equipment without risking operator safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Cable Use: Cable and Horizantal Bar
- Rated Primary Current (I pn ): 100 A
- Rated Secondary Current (I sn ): 5 A
- Current Limit Function: FS 5
- Accuracy: ±0.5%
- Number of Inputs: Primary 1
- Cable Cross-Section: 21 mm
- Rated Cross-Section: 20x10 mm
- Rated Frequency (f): 50 … 60 Hz
- RoHS Declaration: 9AKK108470A7636
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20250213
- REACH Declaration: 9AKK108467A9482
- REACH Information: True - contains substances > 0.1 mass percentage
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
More info
▲| Technical | |
|---|---|
| Cable Use | Cable and Horizantal Bar |
| Rated Primary Current (Ipn) | 100 A |
| Rated Secondary Current (Isn) | 5 A |
| Current Limit Function | FS 5 |
| Accuracy | ±0.5% |
| Number of Inputs | Primary 1 |
| Cable Cross-Section | 21 mm |
| Rated Cross-Section | 20x10 mm |
| Electrical | |
| Rated Frequency (f) | 50 … 60 Hz |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A7636 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250213 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Height | 65 mm |
| Product Net Depth / Length | 40 mm |
| Product Net Weight | 0.34 kg |
| Dimension Diagram | 9AKK108470A9294 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.34 kg |
| E-Number (Finland) | 6719084 |
| Replacement Product ID (NEW) | 2CSG225785R1101 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108470A7636 |
| Installation | |
| Instructions and Manuals | 9AKK108470A3838 |
| Mounting Type | Through Primary |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
