View larger
Images are for illustrative purposes only. Please refer to data sheet for details

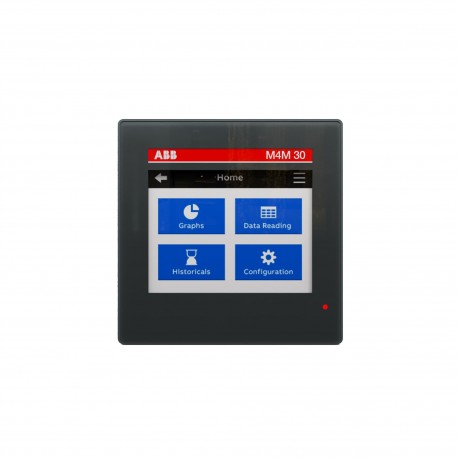

2CSG236791R4051 ABB M4M 30 PROFIBUS Network Analyzer
2CSG236791R4051
236791
ABB
1 Pcs.
M4M 30 PROFIBUS Network Analyzer
Automation > Kilowatt-hour meter
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108470A1669 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 54.85 % |
| Material Resource Reduction (wt. %) | Design for Reduced Resource Consumption - 22 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line | |
| Process Efficiency - Product improves/optimizes process | |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Process Efficiency - Product contribute to reducing customer operations environmental footprint | |
| Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset | |
| Extended Product Lifetime | Product Upgradability |
| Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services | |
| End Of Life Disassembling Instructions | 9AKK108470A0840 |
| Environmental Product Declaration - EPD | 9AKK108469A8099 |
| Technical | |
| Current Rating | 5 A |
| Accuracy | Active Energy ±0.5% |
| Measuring Instrument Conformity | Domestic |
| Meter Tariff Control | Internal |
| External | |
| Meter Tariff Rating | Multi-Tariff |
| Pulse Output Rate | 1 … 999999 |
| Model Number | Measurement transformer |
| Number of Poles | 3P or 4P |
| Number of Phases | 3-phase |
| Number of Counter Positions | 8 |
| Number of Digital In/Outputs | 4 Programmable Inputs/Outputs |
| Energy Meter Type | Effective Power |
| Blind Power | |
| Meter Type | Transformer connected |
| Type of Indicator | Digital |
| Additional Information | CT (1A, 5A) |
| Communication | Profibus DP-V0, Bluetooth |
| Electrical | |
| Rated Voltage (Ur) | 3 x 230 (400) V |
| Voltage Range | 50 … 400 V |
| Rated Current (In) | 5 A |
| Maximum 6 A | |
| Frequency (f) | 50 … 60 Hz |
| Power Consumption (@Pcons) | 10 V·A |
| Material Compliance | |
| RoHS Declaration | 9AKK107680A0174 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250314 |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 70 °C |
| Degree of Protection | IP54 |
| Dimensions | |
| Width in Number of Modular Spacings | 5.5 |
| Product Net Width | 96 mm |
| Product Net Height | 96 mm |
| Product Net Depth / Length | 77 mm |
| Product Net Weight | 360 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.623 kg |
| E-Number (Finland) | 6701089 |
| E-Number (Norway) | 8002558 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108467A6267 |
| EU Data Act Compliance Declaration | 9AKK108471A5057 |
| Installation | |
| Instructions and Manuals | 2CSG445042D0201 |
| Mounting Type | Front Panel |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107992A0896 |
| External Classifications and Standards | |
| ETIM 9 | EC001506 - Kilowatt-hour meter |
| ETIM 10 | EC001506 - Electricity meter |
| eClass | V11.0 : 27142316 |
| Object Classification Code | P |
