2CSG202150R1101 ABB R4M-200

2CSG202150R1101

202150

ABB

1 Pcs.

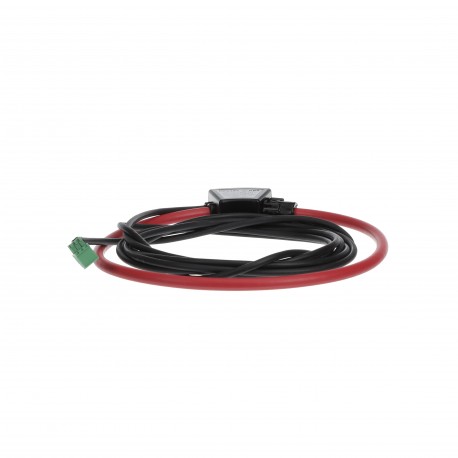

R4M-200 Flexible current transformer based on Rogowski technology (200mm diameter), equipped with pre-wired removable terminals suitable for use with M4M 20 Rogowski and M4M 30 Rogowski

Automation > Current transformer
AER and Transformers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB 2CSG202150R1101 is a single-phase current converter built for large-scale industrial electrical systems requiring robust current transformation and calibration. This unit handles extremely high primary current inputs to support heavy-duty power measurement infrastructure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Single-phase current converter
  • Rated primary current (EF007405): 10000 A
  • Accuracy class (EF008842): 1
  • Calibrated (EF008836): Yes
  • With contact protection (EF008186): Yes
  • Height opening (EF012757): 200 mm
  • Width opening (EF012758): 200 mm
  • Opening diameter (EF005153): 200 mm
  • Snap mounting (EF007462): Yes
  • With copper rail (EF007380): No
  • Number of primary inputs (EF006947): 1

More info

▲

b'

General Information

Extended Product Type:
R4M-200
Product ID:
2CSG202150R1101
EAN:
8012542021506
Catalog Description:
R4M-200 Rogowski coil
Long Description:
Flexible current transformer based on Rogowski technology (200mm diameter), equipped with pre-wired removable terminals suitable for use with M4M 20 Rogowski and M4M 30 Rogowski
\n

Ordering

EAN:
8012542021506
Minimum Order Quantity:
1 piece
Customs Tariff Number:
90303100

Dimensions

Product Net Width:
0.03 mm
Product Net Height:
0.39 mm
Product Net Depth / Length:
0.25 mm
Product Net Weight:
0.25 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
0.03 mm
Package Level 1 Height:
0.39 mm
Package Level 1 Depth / Length:
0.25 mm
Package Level 1 Gross Weight:
0.30 kg
Package Level 1 EAN:
8012542021506

Environmental

RoHS Status:
Following EU Directive 2011/65/EU

Additional Information

Product Main Type:
R4M
Product Name:
Rogowski coil
RoHS Date:
43686

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n9AKK107492A3557
Declaration of Conformity - CE:\n2CSC445028D2701
Instructions and Manuals:\n2CSG445041D0201
RoHS Information:\n2CSC445027D2701

Classifications

ETIM 7:
EC002048 - Current transformer
Object Classification Code:
P
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
\n
'

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
