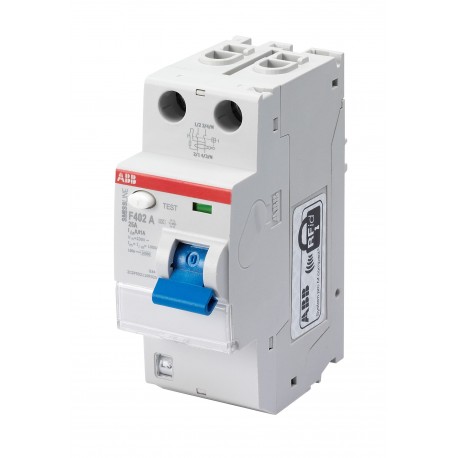

2CSF502110R1400 ABB SMISSLINE-I. Dif F402A40/0.03
2CSF502110R1400
502110
ABB
1 Pcs.
Automation > Residual current circuit breaker (RCCB)
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB SMISSLINE plug-in socket system differential residual current device provides modular ground-fault protection that integrates seamlessly into distribution busbar setups. These specialized devices ensure rapid disconnection upon detecting earth leakage anomalies, enhancing safety in complex power distribution layouts.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- EcoSolutions Profile: 9AKK108471A9687
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.51 %
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- Sustainable Material Content in Packaging (wt. %): Recycled Cardboard - 65.59 %
- Extended Product Lifetime: Product Durability
- Offered with Takeback Services: Take Back for Recycling
- End Of Life Disassembling Instructions: 9AKK108471A5442
- Environmental Product Declaration - EPD: 9AKK108471A3252
- Type of Residual Current: Type A
- Rated Service Short-Circuit Breaking Capacity (I cs ): 1 kA
- Maximum Surge Current: 0.25 kA
- Leakage Current Type: A
- Number of Poles: 2P
- Operating Characteristic: Instantaneous
- Accessories Available: Yes
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108471A9687 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.51 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard - 65.59 % |
| Extended Product Lifetime | Product Durability |
| Offered with Takeback Services | Take Back for Recycling |
| End Of Life Disassembling Instructions | 9AKK108471A5442 |
| Environmental Product Declaration - EPD | 9AKK108471A3252 |
| Technical | |
| Type of Residual Current | Type A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 1 kA |
| Maximum Surge Current | 0.25 kA |
| Leakage Current Type | A |
| Number of Poles | 2P |
| Operating Characteristic | Instantaneous |
| Accessories Available | Yes |
| Rated Cross-Section | 1 - Solid-Core 0...25 mm² |
| 4 - Multi-Wired 0...25 mm² | |
| Electrical | |
| Short-Circuit Current Rating (SCCR) | 0.03 A |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 230 V AC |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 40 A |
| Rated Residual Current | 30 mA |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | Total 9.3 W |
| Design | |
| RAL Number | Similar to RAL 7035 |
| Material Compliance | |
| RoHS Declaration | 2CCC451037D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20210225 |
| REACH Declaration | 9AKK108467A9561 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230417 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Temperature | -25...55 °C |
| Ambient Air Temperature | Operation -25...55 °C |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Environmental Information | 9AKK108467A9561 |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 200 g |
| Built-In Depth (t2) | 69 mm |
| Dimension Diagram | 9AKK107492A6192 |
| Engineering | |
| EPLAN Data | 9AAC128470_EPLAN |
| Ordering | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 0.225 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107991A9063 |
| Installation | |
| Instructions and Manuals | 2CSF423008D6402 |
| Mounting Type | Plug-In |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107492A6192 |
| External Classifications and Standards | |
| ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 10 | EC000003 - Residual current circuit breaker (RCCB) |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27142201 |
| Object Classification Code | Q |
| Standards | EN 61008 |
