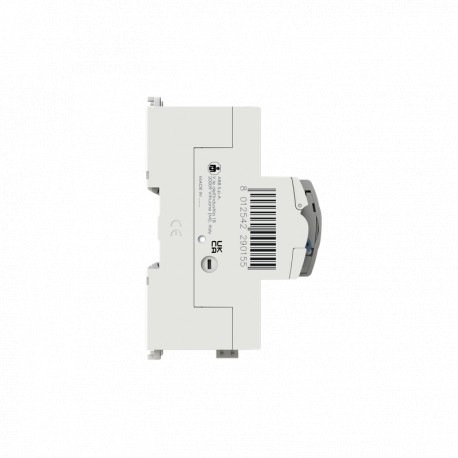

2CSF304131R1630 ABB Reconec. Dif. Aut. FARI4TestA63/0.03
2CSF304131R1630
304131
ABB
1 Pcs.
Automation > Residual current circuit breaker (RCCB) with auxiliary device
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB Reconec. Dif. Aut. FARI4TestA63/0.03 is a multi-pole residual current device equipped with automated testing functions for enhanced personnel safety in commercial power distribution. Such components continuously survey active line loads for earth leakage anomalies, automatically isolating faulty zones to prevent hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of Residual Current: Type A
- Rated Service Short-Circuit Breaking Capacity (I cs ): 1 kA
- Maximum Surge Current: 3 kA
- Leakage Current Type: A
- Number of Poles: 4P
- Operating Characteristic: Instantaneous
- Position of Neutral Terminals: Right
- Rated Cross-Section: 1 - Solid-Core 1 ... 35 mm²
- Rated Voltage (U r ): 400 V
- Rated Operational Voltage: 230 ... 400 V AC
- Rated Insulation Voltage (U i ): 500 V
- Rated Impulse Withstand Voltage (U imp ): 4 kV
- Rated Current (I n ): 63 A
- Rated Residual Current: 30 mA
- Rated Conditional Short-Circuit Current (I nc ): 10 kA
- Rated Frequency (f): 50 Hz
More info
▲| Technical | |
|---|---|
| Type of Residual Current | Type A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 1 kA |
| Maximum Surge Current | 3 kA |
| Leakage Current Type | A |
| Number of Poles | 4P |
| Operating Characteristic | Instantaneous |
| Position of Neutral Terminals | Right |
| Rated Cross-Section | 1 - Solid-Core 1 ... 35 mm² |
| 4 - Multi-Wired 1 ... 35 mm² | |
| Electrical | |
| Rated Voltage (Ur) | 400 V |
| Rated Operational Voltage | 230 ... 400 V AC |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Current (In) | 63 A |
| Rated Residual Current | 30 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Frequency (f) | 50 Hz |
| Power Loss | Total 12 W |
| Material Compliance | |
| RoHS Declaration | 9AKK106930A2452 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20200527 |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Temperature | -25...60 °C |
| Ambient Air Temperature | Operation -25...60 °C |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Environmental Information | Refer to Declaration of Conformity CE |
| Dimensions | |
| Width in Number of Modular Spacings | 7 |
| Product Net Width | 125 mm |
| Product Net Height | 115 mm |
| Product Net Depth / Length | 80 mm |
| Product Net Weight | 880 g |
| Built-In Depth (t2) | 80 mm |
| Engineering | |
| EPLAN Data | 9AAC187566_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.000 kg |
| E-Number (Sweden) | 2160050 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106930A2452 |
| Installation | |
| Instructions and Manuals | 2CSS490030D1001 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK106930A8017 |
| External Classifications and Standards | |
| ETIM 9 | EC002693 - Residual current circuit breaker (RCCB) with auxiliary device |
| ETIM 10 | EC002693 - Residual current circuit breaker (RCCB) with auxiliary device |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27142211 |
| IDEA Granular Category Code (IGCC) | 4877 >> Residual current circuit breaker (RCCB) with auxiliary device |
| Object Classification Code | Q |
| Standards | EN 61008 |
| CPT054 | |
| EN 50557 | |
