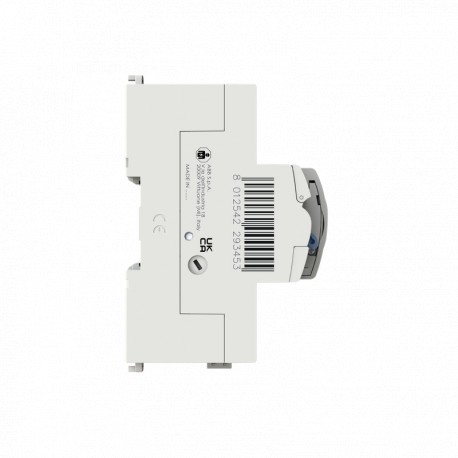

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
2CSF302131R1400 ABB Reconec. Dif. Aut. FARI2TestA40/0.03
2CSF302131R1400
302131
ABB
1 Pcs.
Reconec. Dif. Aut. FARI2TestA40/0.03
Autoreclosing device with Automatic Test F-ARI Test - 2P - 30 mA - 40 A - Type A
Automation > Residual current circuit breaker (RCCB) with auxiliary device
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Type of Residual Current | Type A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 1 kA |
| Maximum Surge Current | 3 kA |
| Leakage Current Type | A |
| Number of Poles | 2P |
| Operating Characteristic | Instantaneous |
| Position of Neutral Terminals | Right |
| Rated Cross-Section | 1 - Solid-Core 1 ... 35 mm² |
| 4 - Multi-Wired 1 ... 35 mm² | |
| Electrical | |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 230 ... 400 V AC |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Current (In) | 40 A |
| Rated Residual Current | 30 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Frequency (f) | 50 Hz |
| Power Loss | Total 5.4 W |
| Material Compliance | |
| RoHS Declaration | 9AKK106930A2452 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20200527 |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Temperature | -25...60 °C |
| Ambient Air Temperature | Operation -25...60 °C |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Environmental Information | Refer to Declaration of Conformity CE |
| Dimensions | |
| Width in Number of Modular Spacings | 5 |
| Product Net Width | 90 mm |
| Product Net Height | 115 mm |
| Product Net Depth / Length | 80 mm |
| Product Net Weight | 570 g |
| Built-In Depth (t2) | 80 mm |
| Engineering | |
| EPLAN Data | 9AAC187566_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.700 kg |
| E-Number (Sweden) | 2160046 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106930A2452 |
| Installation | |
| Instructions and Manuals | 2CSS490030D1001 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK106930A8017 |
| External Classifications and Standards | |
| ETIM 9 | EC002693 - Residual current circuit breaker (RCCB) with auxiliary device |
| ETIM 10 | EC002693 - Residual current circuit breaker (RCCB) with auxiliary device |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27142211 |
| IDEA Granular Category Code (IGCC) | 4877 >> Residual current circuit breaker (RCCB) with auxiliary device |
| Object Classification Code | Q |
| Standards | EN 61008 |
| CPT054 | |
| EN 50557 | |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 2 |
| Rated voltage (EF000228) | 400 V |
| Rated current (EF000227) | 40 A |
| Leakage current type (EF002560) | A |
| Selective protection (EF002561) | No |
| Short-time delayed tripping (EF003604) | Yes |
| Short-circuit breaking capacity (Icw) (EF002562) | 1 kA |
| Surge current capacity (EF002564) | 3 kA |
| Frequency (EF000034) | 50 Hz |
| Degree of protection (IP) (EF005474) | IP20 |
| Width in number of modular spacings (EF002950) | 5 |
| Built-in depth (EF000218) | 80 mm |
