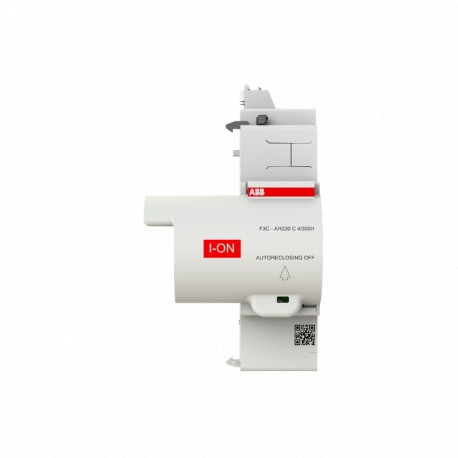

2CSF208998R0035 ABB Reconnect. leak check F3C-AR230C 4/300H
2CSF208998R0035
208998
ABB
1 Pcs.
Automation > Auxiliary device for distribution board devices
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 2CSF208998R0035 ABB reconnecting leak check module is an advanced automatic resetting accessory designed to monitor residual current devices and safely restore power after temporary nuisance trips. It protects residential and commercial circuits by verifying insulation integrity before permitting automated reclosure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mechanical Endurance: 5000 cycle
- Tightening Torque: 0.4 N·m
- Number of Batteries: 0
- Cable Size: 0.2 … 2.5 mm²
- Wire Stripping Length: 0.005 mm
- Terminal Type: Plug-in Connection
- Supply Voltage: 230-240 V AC V
- Power Consumption (@P cons ): <20 W
- Overvoltage Category: III
- Number of Modules: 1.5
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Consumer
- Ambient Air Temperature: Operation -25 …+60 °C
- Degree of Protection: Housing IP40
- Pollution Degree: 2
More info
▲| Technical | |
|---|---|
| Mechanical Endurance | 5000 cycle |
| Tightening Torque | 0.4 N·m |
| Number of Batteries | 0 |
| Cable Size | 0.2 … 2.5 mm² |
| Wire Stripping Length | 0.005 mm |
| Terminal Type | Plug-in Connection |
| Electrical | |
| Supply Voltage | 230-240 V AC V |
| Power Consumption (@Pcons) | <20 W |
| Overvoltage Category | III |
| Design | |
| Number of Modules | 1.5 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 …+60 °C |
| Degree of Protection | Housing IP40 |
| Terminals IP20 | |
| Pollution Degree | 2 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g 5… 150 …5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 16 ms |
| Dimensions | |
| Product Net Width | 81.5 mm |
| Product Net Height | 104.15 mm |
| Product Net Depth / Length | 58.3 mm |
| Product Net Weight | 0.130 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.150 kg |
| Popular Downloads | |
| External Classifications and Standards | |
| ETIM 9 | EC001286 - Auxiliary device for distribution board devices |
| ETIM 10 | EC001286 - Auxiliary device for distribution board devices |
| Standards | IEC63024 |
