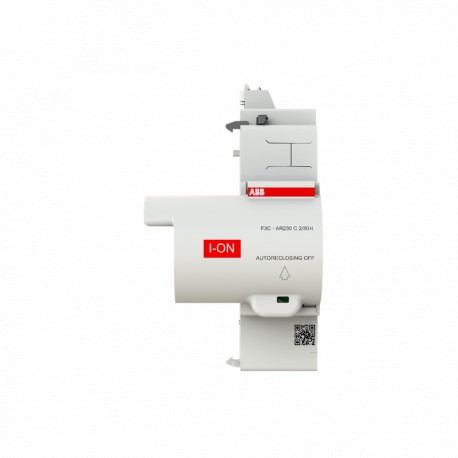

2CSF205998R0035 ABB Reconnect. leak check F3C-AR230C 2/30H
2CSF205998R0035
205998
ABB
1 Pcs.
Reconnect. leak check F3C-AR230C 2/30H
Autoreclosing unit with system check F3C-AR
Automation > Auxiliary device for distribution board devices
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 2CSF205998R0035 ABB Reconnect. leak check F3C-AR230C 2/30H automates isolation checks and resets on electrical circuits following earth leakage tripping events.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Mechanical Endurance: 5000 cycle
- Tightening Torque: 0.4 N·m
- Number of Batteries: 0
- Cable Size: 0.2 … 2.5 mm²
- Wire Stripping Length: 0.005 mm
- Terminal Type: Plug-in Connection
- Supply Voltage: 230-240 V AC V
- Power Consumption (@P cons ): <20 W
- Overvoltage Category: III
- Number of Modules: 1.5
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Consumer Ambient Air Temperature: Operation -25 …+60 °C
- Degree of Protection: Housing IP40
- Pollution Degree: 2
More info
▲| Technical | |
|---|---|
| Mechanical Endurance | 5000 cycle |
| Tightening Torque | 0.4 N·m |
| Number of Batteries | 0 |
| Cable Size | 0.2 … 2.5 mm² |
| Wire Stripping Length | 0.005 mm |
| Terminal Type | Plug-in Connection |
| Electrical | |
| Supply Voltage | 230-240 V AC V |
| Power Consumption (@Pcons) | <20 W |
| Overvoltage Category | III |
| Design | |
| Number of Modules | 1.5 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 …+60 °C |
| Degree of Protection | Housing IP40 |
| Terminals IP20 | |
| Pollution Degree | 2 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g 5… 150 …5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 16 ms |
| Dimensions | |
| Product Net Width | 81.5 mm |
| Product Net Height | 104.15 mm |
| Product Net Depth / Length | 58.3 mm |
| Product Net Weight | 0.130 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.150 kg |
| Popular Downloads | |
| External Classifications and Standards | |
| ETIM 9 | EC001286 - Auxiliary device for distribution board devices |
| ETIM 10 | EC001286 - Auxiliary device for distribution board devices |
| Standards | IEC63024 |
