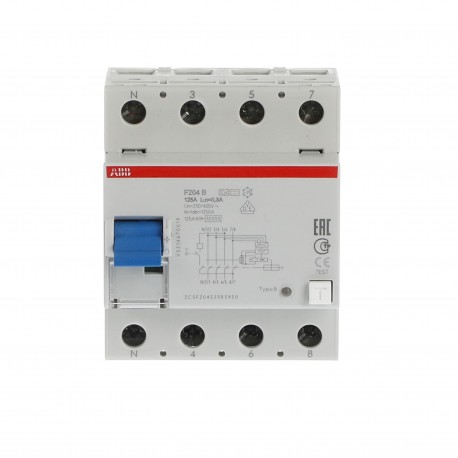

2CSF204523R4950 ABB Int.dif.F204B-125/0.5L 4p 125A B 500mA
2CSF204523R4950
204523
ABB
1 Pcs.
Automation > Residual current circuit breaker (RCCB)
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 2CSF204523R4950 residual current device provides robust protection against earth faults and leakage currents in high-capacity multi-phase industrial installations. This component ensures circuit interruption during insulation failures, minimizing hazards to personnel and attached machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- EcoSolutions Profile: 9AKK108469A3795
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 51.4 %
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- Sustainable Material Content in Packaging (wt. %): Recycled Paper - 78 %
- Extended Product Lifetime: Product Durability
- End Of Life Disassembling Instructions: 9AKK108468A4363
- Environmental Product Declaration - EPD: 9AKK108467A3700
- Type of Residual Current: Type B
- Test Voltage (Ut): 150…250 V
- Maximum Surge Current: 3 kA
- Leakage Current Type: B
- Power Supply Connection: Arbitrary
- Electrical Endurance: 2000 cycle
- Mechanical Endurance: 5000 cycle
- Number of Poles: 4P
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108469A3795 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 51.4 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Sustainable Material Content in Packaging (wt. %) | Recycled Paper - 78 % |
| Extended Product Lifetime | Product Durability |
| End Of Life Disassembling Instructions | 9AKK108468A4363 |
| Environmental Product Declaration - EPD | 9AKK108467A3700 |
| Technical | |
| Type of Residual Current | Type B |
| Test Voltage (Ut) | 150…250 V |
| Maximum Surge Current | 3 kA |
| Leakage Current Type | B |
| Power Supply Connection | Arbitrary |
| Electrical Endurance | 2000 cycle |
| Mechanical Endurance | 5000 cycle |
| Number of Poles | 4P |
| Number of Modular Spacings per DIN Rail | 4 |
| Operating Characteristic | 10ms Delay (High Immunity) |
| Position of Neutral Terminals | Left |
| Tightening Torque | 3 N·m |
| Accessory Type | Signal/Auxiliary contact |
| Motor operating device | |
| Actuator Type | Toggle - Insulation group I - II, RAL 5015 |
| Housing Type | Insulation group I - II, RAL 7035 |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Options Provided | None |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm² |
| Rigid 35 ... 35 mm² | |
| Flexible 35 ... 35 mm² | |
| Rated Cross-Section | 4 - Multi-Wired 0...25 mm² |
| 1 - Solid-Core 50…50 mm² | |
| Terminal Type | Screw Terminals |
| Electrical | |
| Rated Voltage (Ur) | 230/400 V |
| Rated Operational Voltage | 230 … 400 V AC |
| Rated Insulation Voltage (Ui) | 400 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 125 A |
| Rated Residual Current | 500 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Frequency (f) | 50 Hz |
| Rated Frequency (f) | 50 Hz |
| Power Loss | at Rated Operating Conditions per Pole 11.2 W |
| Total 33.6 W | |
| Design | |
| Number of Modules | 4 |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5610 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20100528 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 1260ecb6-5200-40ff-b2e0-368a5c7da280 Italy |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 40 °C |
| Storage -40 ... 70 °C | |
| Degree of Protection | Terminals IP20 |
| Housing IP40 | |
| Pollution Degree | 2 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 5 … 150 … 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Environmental Information | Refer to RoHS |
| Dimensions | |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 72 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 75 mm |
| Product Net Weight | 500 g |
| Built-In Depth (t2) | 69 mm |
| Engineering | |
| EPLAN Data | 9AAF619163_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.545 kg |
| E-Number (Finland) | 3210605 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5610 |
| Installation | |
| Instructions and Manuals | 9AKK107992A0195 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A7569 |
| External Classifications and Standards | |
| ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 10 | EC000003 - Residual current circuit breaker (RCCB) |
| eClass | V11.0 : 27142201 |
| IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
| Object Classification Code | F |
| Standards | IEC/EN 61008-1, IEC/EN 61008-2-1, IEC/EN 62423 |
