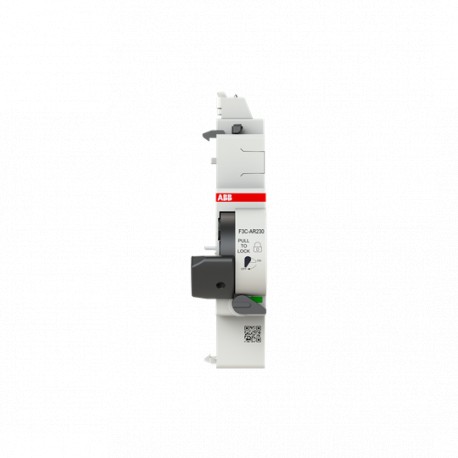

2CSF202998R0034 ABB Self-connecting unit. F3C-AR230
2CSF202998R0034
2CSF202998R0034
ABB
1 Pcs.
Self-connecting unit. F3C-AR230
Autoreclosing unit F3C-AR
Automation > Auxiliary device for distribution board devices
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
2CSF202998R0034 ABB Self-connecting unit. F3C-AR230 by Abb serves as an auxiliary switch and relay module engineered for seamless integration with electrical protection devices to enhance system monitoring.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 9AKK108470A7409
- Suitable For: F200 up to 100A
- Suitable for Product Class: Auxiliary switch/relay
- Mechanical Endurance: 15000 cycle
- Tightening Torque: 0.4 N·m
- Number of Batteries: 0
- Cable Size: 0.2 … 2.5 mm²
- Connecting Capacity: Flexible 0.2 ... 2.5 mm²
- Wire Stripping Length: 5 mm
- Terminal Type: Plug-in Connection
- Rated Voltage (U r ): 230 … 240 V
- Rated Operational Voltage: 230 ... 240 V AC
- Supply Voltage: 230 … 240 V AC V
- Input Voltage Type: AC/DC
- Power Consumption (@P cons ): <30 V·A
- Overvoltage Category: III
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108470A7409 |
| Technical | |
| Suitable For | F200 up to 100A |
| F200 B Type up to 63A | |
| Suitable for Product Class | Auxiliary switch/relay |
| Mechanical Endurance | 15000 cycle |
| Tightening Torque | 0.4 N·m |
| Number of Batteries | 0 |
| Cable Size | 0.2 … 2.5 mm² |
| Connecting Capacity | Flexible 0.2 ... 2.5 mm² |
| Wire Stripping Length | 5 mm |
| Terminal Type | Plug-in Connection |
| Electrical | |
| Rated Voltage (Ur) | 230 … 240 V |
| Rated Operational Voltage | 230 ... 240 V AC |
| Supply Voltage | 230 … 240 V AC V |
| Input Voltage Type | AC/DC |
| Power Consumption (@Pcons) | <30 V·A |
| Overvoltage Category | III |
| Design | |
| Number of Modules | 1 |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A8802 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231130 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 …+60 °C |
| Degree of Protection | Housing IP40 |
| Terminals IP20 | |
| Pollution Degree | 2 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g 5 … 150 … 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Dimensions | |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 80 mm |
| Product Net Height | 104.15 mm |
| Product Net Depth / Length | 25.85 mm |
| Product Net Weight | 100 g |
| Dimension Diagram | 9AKK108469A6919 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.127 kg |
| E-Number (Sweden) | 2101507 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108468A8802 |
| Installation | |
| Instructions and Manuals | 9AKK108468A3844 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108469A4955 |
| Electrical Drawings | 9AKK108469A6923 |
| External Classifications and Standards | |
| ETIM 9 | EC001286 - Auxiliary device for distribution board devices |
| ETIM 10 | EC001286 - Auxiliary device for distribution board devices |
| Standards | IEC63024 |
