View larger
Images are for illustrative purposes only. Please refer to data sheet for details

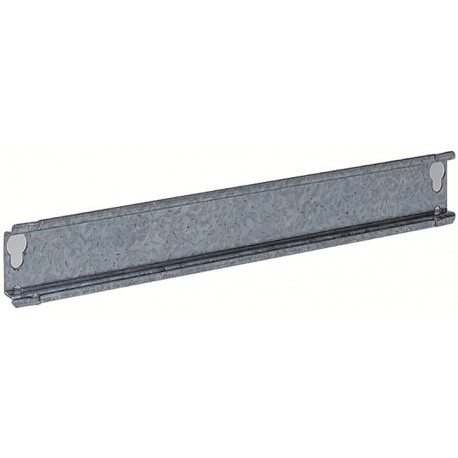

2CPX068076R9999 ABB DIN rail 35 x 7.5 mm (1 width)
2CPX068076R9999
2CPX068076R9999
ABB
1 Pcs.
DIN rail 35 x 7.5 mm (1 width)
Mounting rail, 35 mm x 190 mm x 7.5 mm
Automation > Mounting rail
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Model Number | DIN rail (top hat rail) 35/7.5 mm |
| Enclosure Type | Mounting rail |
| DIN Place Units | 0 |
| Meter Boards | 0 |
| Design | |
| Shape | Square hole |
| Surface Finishing | Sendzimir galvanized |
| Material | Steel |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 190 mm |
| Product Net Height | 35 mm |
| Product Net Depth / Length | 7.5 mm |
| Product Net Weight | 0.06 kg |
| Thickness | 1 mm |
| Engineering | |
| EPLAN Data | 9AAF623180_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.062 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001285 - Mounting rail |
| ETIM 10 | EC001285 - Mounting rail for electrical/industrial control equipment |
| eClass | V11.0 : 27400602 |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | DIN rail (top hat rail) 35/7.5 mm |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Punch shape (EF001457) | Square hole |
| Material thickness (EF000386) | 1 mm |
| Length (EF001438) | 7.5 mm |
| Height (EF000040) | 35 mm |
