View larger
Images are for illustrative purposes only. Please refer to data sheet for details

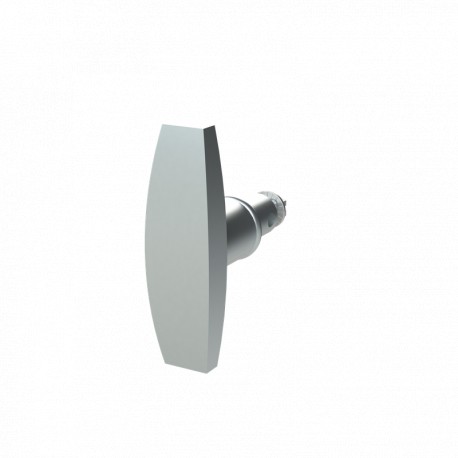

2CPX060498R9999 ABB ZH138 Non-Lock T-Handle, A,U
2CPX060498R9999
060498
ABB
1 Pcs.
ZH138 Non-Lock T-Handle, A,U
Lock replacement part, 25 mm x 70 mm x 80 mm
Automation > Lock system for switchgear cabinet systems
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Suitable For | 1/10R3 1/10R4 1/10R6 1/10RG3 1/10RG4 1/10RG6 1/2FS 1/2G 1/3FS 1/81C 1/81G 1/82C 1/8C 1/8FS 1/8G 1/8H 1/8HS 1/8R3 1/8R4 1/8R6 1/8RG3 1/8RG4 1/8RG6 1/8W 1/8WS 1/8WSO 2/0C 2/0FS 2/0G 2/10R3 2/10R4 2/10R6 2/10R8 2/10RG3 2/10RG4 2/10RG6 2/10RG8 2/2C 2/2FS 2/2G_x0013_Ǜ粑_xDC84__x0013_粐Ȩ粑_xFFFF__xFFFF_Ȣ粑ƛ粑Ǜ粑_xDD50__x0013_༁ |
| Enclosure Type | Lock replacement part |
| Handle Type | T-handle |
| Meter Type | " |
| DIN Place Units | 0 |
| Meter Boards | 1 |
| Material Compliance | |
| RoHS Declaration | 2CPC100023X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20251118 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 70 mm |
| Product Net Height | 25 mm |
| Product Net Depth / Length | 80 mm |
| Product Net Weight | 0.14 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.146 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100023X0201 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000327 - Lock system for enclosure/cabinet |
| ETIM 10 | EC000327 - Lock system for enclosure/cabinet |
| eClass | V11.0 : 27400641 |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Type of handle (EF001165) | T-handle |
| Toggle (EF001164) | Yes |
| Padlock locking (EF001163) | No |
| Espagnolette locking (3-point locking) (EF009216) | No |
