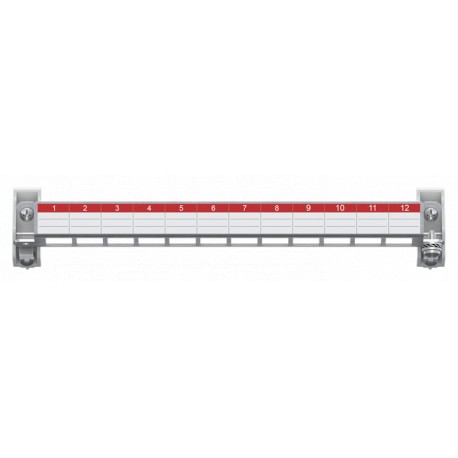

2CPX054072R9999 ABB Patchpanel 12mod by Edat+Keystone
2CPX054072R9999
2CPX054072R9999
ABB
1 Pcs.
Automation > Mounting accessories (switchgear cabinet)
Residential boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Abb 2CPX054072R9999 patch panel facilitates organized modular data and telecommunication connections inside electrical distribution systems. Patch panels of this style are heavily relied upon in control cabinets to consolidate network cabling and interface modules. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Accessory Type: patch panel
- Enclosure Type: Interior fitting system
- DIN Place Units: 12
- Surface Finishing: Galvanised
- Material: sheet steel
- Number of Modules: 12
- RoHS Declaration: 2CPC100014X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20240903;20230921
- REACH Declaration: 2CPC100005X0201
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20240902
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: Product Not in WEEE Scope
- Product Net Width: 246 mm
- Product Net Height: 32.7 mm
More info
▲| Technical | |
|---|---|
| Accessory Type | patch panel |
| Enclosure Type | Interior fitting system |
| DIN Place Units | 12 |
| Design | |
| Surface Finishing | Galvanised |
| Material | sheet steel |
| Number of Modules | 12 |
| Material Compliance | |
| RoHS Declaration | 2CPC100014X0201 |
| 2CPC100022X0202 | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903;20230921 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 246 mm |
| Product Net Height | 32.7 mm |
| Product Net Depth / Length | 50.8 mm |
| Product Net Weight | 0.176 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.183 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100014X0201 |
| 2CPC100022X0202 | |
| Installation | |
| Instructions and Manuals | 2CPC130109M5601 |
| 2CPC133962M5601 | |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC002625 - Mounting accessories (enclosure/cabinet) |
| ETIM 10 | EC002625 - Mounting accessories (enclosure/cabinet) |
| eClass | V11.0 : 27182807 |
| Object Classification Code | U |
