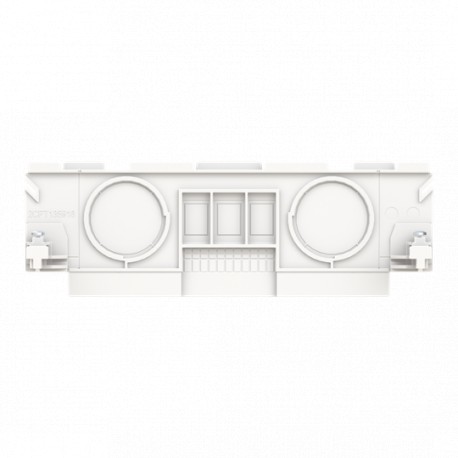

ABB 2CPX052699R9999 2CPX052699R9999 ABB CL Comp. vertical partition View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX052699R9999 ABB CL Comp. vertical partition

2CPX052699R9999

2CPX052699R9999

ABB

1 Pcs.

CL Comp. vertical partition ComfortLine Compact , Plastic , Light grey

Automation > Mounting accessories (switchgear cabinet)
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 2CPX052699R9999 ABB CL Comp. vertical partition acts as an interior divider used to section off compartments within modular distribution boards. Vertical partitions prevent accidental contact between neighboring functional units and improve arc containment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Enclosure Type: Interior fitting system
  • Material: Plastic
  • RAL Number: RAL 7035 - Light Grey
  • Color: Light grey
  • RoHS Declaration: 2CPC100012X0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20240903
  • REACH Declaration: 2CPC100005X0201
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240902
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: Product Not in WEEE Scope
  • Product Net Width: 250 mm
  • Product Net Height: 35 mm
  • Product Net Depth / Length: 82 mm
  • Product Net Weight: 0.247 kg

More info

▲
Technical
Enclosure TypeInterior fitting system
Design
MaterialPlastic
RAL NumberRAL 7035 - Light Grey
ColorLight grey
Material Compliance
RoHS Declaration2CPC100012X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width250 mm
Product Net Height35 mm
Product Net Depth / Length82 mm
Product Net Weight0.247 kg
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.257 kg
Certificates and Declarations
Declaration of Conformity - CE2CPC100012X0201
Installation
Instructions and Manuals2CPC136386M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 10EC002625 - Mounting accessories (enclosure/cabinet)
Object Classification CodeU
