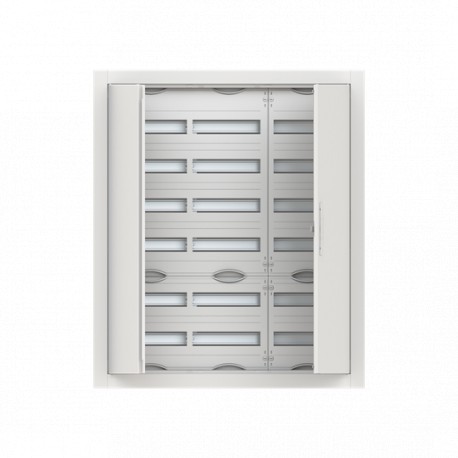

CU36V Arm Emp 216mód (125mm) pta met ComfortLine Compact distribution board, Flush mounting, 216 SU, Isolated (Class II), IP30, Rows: 6, 1014 mm x 865 mm x 125 mm

Automation > Small distribution board
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manage large-scale power distribution networks efficiently using the Abb 2CPX052620R9999 CU36V Arm Emp 216mód (125mm) pta met. Flush-mounted compact distribution boards consolidate heavy-duty electrical switchgear and modular protection components within secure steel housings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of Rows: 6
  • Closure Type: Turn Handle
  • Configuration Type: expanded with distributor fields
  • Cover Plate Type: Door
  • Enclosure Type: Compact distribution board
  • Door Type: Double
  • Accessories Available: Yes
  • DIN Place Units: 216
  • Terminal Type: Quick-Terminal
  • Rated Operational Voltage: Maximum 400 V
  • Rated Current (I n ): 125 A
  • Power Loss: Δt = 20K 70.5 W
  • Surface Finishing: Powder-coated
  • Housing Material: Steel
  • Door Material: Steel Sheet
  • Cover Style: Closed

More info

▲
Technical
Number of Rows6
Closure TypeTurn Handle
Configuration Typeexpanded with distributor fields
Cover Plate TypeDoor
Enclosure TypeCompact distribution board
Door TypeDouble
Accessories AvailableYes
DIN Place Units216
Terminal TypeQuick-Terminal
Electrical
Rated Operational VoltageMaximum 400 V
Rated Current (In)125 A
Power LossΔt = 20K 70.5 W
Δt = 25K 93.1 W
Δt = 30K 116.8 W
Design
Surface FinishingPowder-coated
Housing MaterialSteel
Door MaterialSteel Sheet
Cover StyleClosed
RAL NumberRAL 9016 - Traffic White
ColorTraffic white
Number of Modules216
Material Compliance
RoHS Declaration2CPC100013X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP30
Protection ClassIsolated (Class II)
Dimensions
Width in Number of Modular Spacings36
Product Net Width865 mm
Product Net Height1014 mm
Product Net Depth / Length125 mm
Product Net Weight28.341 kg
Section Width3
Built-In Depth (t2)110 mm
Engineering
Building Information Modeling – BIM9AKK108471A4901
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight29.522 kg
Certificates and Declarations
Declaration of Conformity - CE2CPC100013X0201
Installation
Instructions and Manuals2CPC136385M5601
Mounting TypeFlush mounting
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC000214 - Small distribution board
ETIM 10EC000214 - Small distribution board
Object Classification CodeU
StandardsDIN EN 61439-3

Product Datasheet
