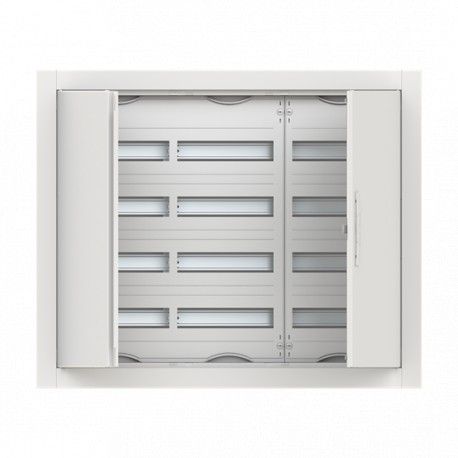

ABB 2CPX052618R9999 2CPX052618R9999 ABB CU34V Arm Emp 144mód (125mm) pta met View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX052618R9999 ABB CU34V Arm Emp 144mód (125mm) pta met

2CPX052618R9999

2CPX052618R9999

ABB

1 Pcs.

CU34V Arm Emp 144mód (125mm) pta met ComfortLine Compact distribution board, Flush mounting, 144 SU, Isolated (Class II), IP30, Rows: 4, 714 mm x 865 mm x 125 mm

Automation > Small distribution board
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB component 2CPX052618R9999 operates as a compact distribution board designed to support expanded electrical distribution fields and modular control hardware. Distribution enclosures aggregate protective breakers and busbar assemblies safely within industrial and commercial electrical rooms.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of Rows: 4
  • Closure Type: Turn Handle
  • Configuration Type: expanded with distributor fields
  • Cover Plate Type: Door
  • Enclosure Type: Compact distribution board
  • Door Type: Double
  • Accessories Available: Yes
  • DIN Place Units: 144
  • Terminal Type: Quick-Terminal
  • Rated Operational Voltage: Maximum 400 V
  • Rated Current (I n ): 125 A
  • Power Loss: Δt = 20K 52.7 W
  • Surface Finishing: Powder-coated
  • Housing Material: Steel
  • Door Material: Steel Sheet
  • Cover Style: Closed

More info

▲
Technical
Number of Rows4
Closure TypeTurn Handle
Configuration Typeexpanded with distributor fields
Cover Plate TypeDoor
Enclosure TypeCompact distribution board
Door TypeDouble
Accessories AvailableYes
DIN Place Units144
Terminal TypeQuick-Terminal
Electrical
Rated Operational VoltageMaximum 400 V
Rated Current (In)125 A
Power LossΔt = 20K 52.7 W
Δt = 25K 69.6 W
Δt = 30K 87.3 W
Design
Surface FinishingPowder-coated
Housing MaterialSteel
Door MaterialSteel Sheet
Cover StyleClosed
RAL NumberRAL 9016 - Traffic White
ColorTraffic white
Number of Modules144
Material Compliance
RoHS Declaration2CPC100013X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP30
Protection ClassIsolated (Class II)
Dimensions
Width in Number of Modular Spacings36
Product Net Width865 mm
Product Net Height714 mm
Product Net Depth / Length125 mm
Product Net Weight19.976 kg
Section Width3
Built-In Depth (t2)110 mm
Engineering
Building Information Modeling – BIM9AKK108471A4901
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight20.808 kg
Certificates and Declarations
Declaration of Conformity - CE2CPC100013X0201
Installation
Instructions and Manuals2CPC136385M5601
Mounting TypeFlush mounting
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC000214 - Small distribution board
ETIM 10EC000214 - Small distribution board
Object Classification CodeU
StandardsDIN EN 61439-3
