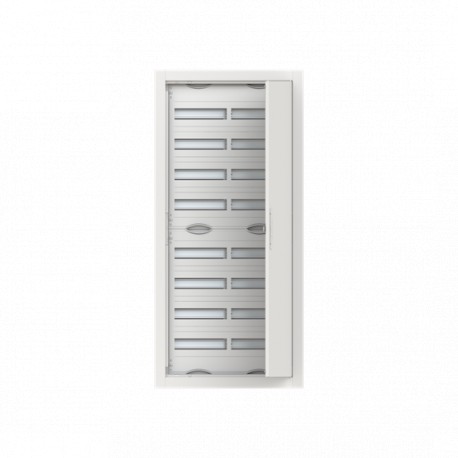

2CPX052617R9999 ABB CU28V Arm Emp 192mód (125mm) pta met
2CPX052617R9999
2CPX052617R9999
ABB
1 Pcs.
Automation > Small distribution board
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing robust housing for high-capacity electrical panels, the 2CPX052617R9999 ABB CU28V Arm Emp 192mód (125mm) pta met from Abb operates as a compact distribution board with an integrated steel frame.
Such industrial distribution boards accommodate extensive modular arrays to support structured power distribution and safety switching. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of Rows: 8
- Closure Type: Turn Handle
- Configuration Type: expanded with distributor fields
- Cover Plate Type: Door
- Enclosure Type: Compact distribution board
- Door Type: Single
- Accessories Available: Yes
- DIN Place Units: 192
- Terminal Type: Quick-Terminal
- Rated Operational Voltage: Maximum 400 V
- Rated Current (I n ): 125 A
- Power Loss: Δt = 20K 63.6 W
- Surface Finishing: Powder-coated
- Housing Material: Steel
- Door Material: Steel Sheet
- Cover Style: Closed
More info
▲| Technical | |
|---|---|
| Number of Rows | 8 |
| Closure Type | Turn Handle |
| Configuration Type | expanded with distributor fields |
| Cover Plate Type | Door |
| Enclosure Type | Compact distribution board |
| Door Type | Single |
| Accessories Available | Yes |
| DIN Place Units | 192 |
| Terminal Type | Quick-Terminal |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Rated Current (In) | 125 A |
| Power Loss | Δt = 20K 63.6 W |
| Δt = 25K 84 W | |
| Δt = 30K 105.3 W | |
| Design | |
| Surface Finishing | Powder-coated |
| Housing Material | Steel |
| Door Material | Steel Sheet |
| Cover Style | Closed |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Number of Modules | 192 |
| Material Compliance | |
| RoHS Declaration | 2CPC100013X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP30 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 24 |
| Product Net Width | 615 mm |
| Product Net Height | 1314 mm |
| Product Net Depth / Length | 125 mm |
| Product Net Weight | 24.658 kg |
| Section Width | 2 |
| Built-In Depth (t2) | 110 mm |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108471A4901 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 25.644 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100013X0201 |
| Installation | |
| Instructions and Manuals | 2CPC136385M5601 |
| Mounting Type | Flush mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000214 - Small distribution board |
| ETIM 10 | EC000214 - Small distribution board |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
