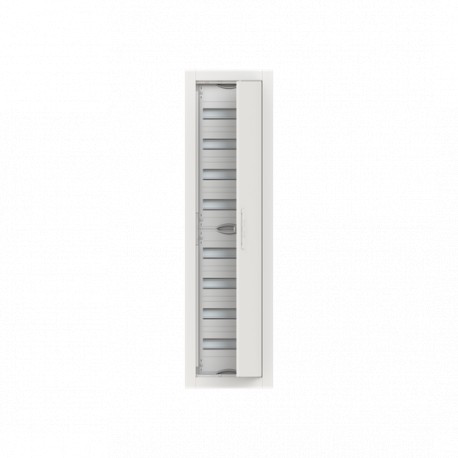

2CPX052611R9999 ABB CU18V Arm Emp 96mód (125mm) pta met

2CPX052611R9999

2CPX052611R9999

ABB

1 Pcs.

CU18V Arm Emp 96mód (125mm) pta met ComfortLine Compact distribution board, Flush mounting, 96 SU, Isolated (Class II), IP30, Rows: 8, 1314 mm x 365 mm x 125 mm

Automation > Small distribution board
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

2CPX052611R9999 ABB CU18V Arm Emp 96mód (125mm) pta met from Abb is a compact distribution board designed to safely house, organize, and protect modular electrical control devices in large-scale power distribution networks. Enclosures of this type provide physical security and structured cable routing for industrial automation assets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of Rows: 8
  • Closure Type: Turn Handle
  • Configuration Type: expanded with distributor fields
  • Cover Plate Type: Door
  • Enclosure Type: Compact distribution board
  • Door Type: Single
  • Accessories Available: Yes
  • DIN Place Units: 96
  • Terminal Type: Quick-Terminal
  • Rated Operational Voltage: Maximum 400 V
  • Rated Current (I n ): 125 A
  • Power Loss: Δt = 20K 39.9 W
  • Surface Finishing: Powder-coated
  • Housing Material: Steel
  • Door Material: Steel Sheet
  • Cover Style: Closed

More info

▲
Technical
Number of Rows8
Closure TypeTurn Handle
Configuration Typeexpanded with distributor fields
Cover Plate TypeDoor
Enclosure TypeCompact distribution board
Door TypeSingle
Accessories AvailableYes
DIN Place Units96
Terminal TypeQuick-Terminal
Electrical
Rated Operational VoltageMaximum 400 V
Rated Current (In)125 A
Power LossΔt = 20K 39.9 W
Δt = 25K 52.7 W
Δt = 30K 66.1 W
Design
Surface FinishingPowder-coated
Housing MaterialSteel
Door MaterialSteel Sheet
Cover StyleClosed
RAL NumberRAL 9016 - Traffic White
ColorTraffic white
Number of Modules96
Material Compliance
RoHS Declaration2CPC100013X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP30
Protection ClassIsolated (Class II)
Dimensions
Width in Number of Modular Spacings12
Product Net Width365 mm
Product Net Height1314 mm
Product Net Depth / Length125 mm
Product Net Weight16.442 kg
Section Width1
Built-In Depth (t2)110 mm
Engineering
Building Information Modeling – BIM9AKK108471A4901
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight17.127 kg
Certificates and Declarations
Declaration of Conformity - CE2CPC100013X0201
Installation
Instructions and Manuals2CPC136385M5601
Mounting TypeFlush mounting
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC000214 - Small distribution board
ETIM 10EC000214 - Small distribution board
Object Classification CodeU
StandardsDIN EN 61439-3

Product Datasheet
