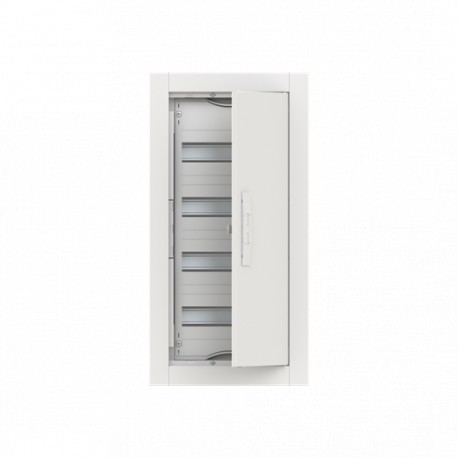

2CPX052607R9999 ABB CU14V Arm Emp 48mód (125mm) pta met
2CPX052607R9999
2CPX052607R9999
ABB
1 Pcs.
Automation > Small distribution board
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB CU14V Arm Emp 48mód (125mm) pta met compact distribution board, designated by part code 2CPX052607R9999. Professional electrical panels like this provide robust structural housing for industrial control systems, safeguarding delicate relays and breakers from physical damage.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Rows: 4
- Closure Type: Turn Handle
- Configuration Type: expanded with distributor fields
- Cover Plate Type: Door
- Enclosure Type: Compact distribution board
- Door Type: Single
- Accessories Available: Yes
- DIN Place Units: 48
- Terminal Type: Quick-Terminal
- Rated Operational Voltage: Maximum 400 V
- Rated Current (I n ): 125 A
- Power Loss: Δt = 20K 22.1 W
- Surface Finishing: Powder-coated
- Housing Material: Steel
- Door Material: Steel Sheet
- Cover Style: Closed
More info
▲| Technical | |
|---|---|
| Number of Rows | 4 |
| Closure Type | Turn Handle |
| Configuration Type | expanded with distributor fields |
| Cover Plate Type | Door |
| Enclosure Type | Compact distribution board |
| Door Type | Single |
| Accessories Available | Yes |
| DIN Place Units | 48 |
| Terminal Type | Quick-Terminal |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Rated Current (In) | 125 A |
| Power Loss | Δt = 20K 22.1 W |
| Δt = 25K 29.1 W | |
| Δt = 30K 36.5 W | |
| Design | |
| Surface Finishing | Powder-coated |
| Housing Material | Steel |
| Door Material | Steel Sheet |
| Cover Style | Closed |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Number of Modules | 48 |
| Material Compliance | |
| RoHS Declaration | 2CPC100013X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP30 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 12 |
| Product Net Width | 365 mm |
| Product Net Height | 714 mm |
| Product Net Depth / Length | 125 mm |
| Product Net Weight | 9.203 kg |
| Section Width | 1 |
| Built-In Depth (t2) | 110 mm |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108471A4901 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 9.586 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100013X0201 |
| Installation | |
| Instructions and Manuals | 2CPC136385M5601 |
| Mounting Type | Flush mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000214 - Small distribution board |
| ETIM 10 | EC000214 - Small distribution board |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
