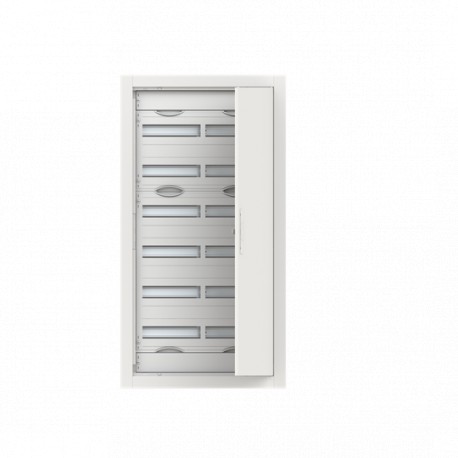

2CPX052603R9999 ABB CU27R Arm Emp 144mód (150mm) pta met
2CPX052603R9999
2CPX052603R9999
ABB
1 Pcs.
Automation > Small distribution board
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This 2CPX052603R9999 ABB CU27R Arm Emp 144mód (150mm) pta met is a robust steel enclosure configured for housing extensive modular distribution components in commercial or industrial installations. Assembled distribution boards provide centralized control, protection, and organization for complex electrical networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Rows: 6
- Closure Type: Turn Handle
- Configuration Type: expanded with distributor fields
- Cover Plate Type: Door
- Enclosure Type: Compact distribution board
- Door Type: Single
- Accessories Available: Yes
- DIN Place Units: 144
- Terminal Type: Quick-Terminal
- Rated Operational Voltage: Maximum 400 V
- Rated Current (I n ): 125 A
- Power Loss: Δt = 20K 56.9 W
- Surface Finishing: Powder-coated
- Housing Material: Steel
- Door Material: Steel Sheet
- Cover Style: Closed
More info
▲| Technical | |
|---|---|
| Number of Rows | 6 |
| Closure Type | Turn Handle |
| Configuration Type | expanded with distributor fields |
| Cover Plate Type | Door |
| Enclosure Type | Compact distribution board |
| Door Type | Single |
| Accessories Available | Yes |
| DIN Place Units | 144 |
| Terminal Type | Quick-Terminal |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Rated Current (In) | 125 A |
| Power Loss | Δt = 20K 56.9 W |
| Δt = 25K 75.1 W | |
| Δt = 30K 94.2 W | |
| Design | |
| Surface Finishing | Powder-coated |
| Housing Material | Steel |
| Door Material | Steel Sheet |
| Cover Style | Closed |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Number of Modules | 144 |
| Material Compliance | |
| RoHS Declaration | 2CPC100013X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP30 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 24 |
| Product Net Width | 615 mm |
| Product Net Height | 1164 mm |
| Product Net Depth / Length | 125 mm |
| Product Net Weight | 22.462 kg |
| Section Width | 2 |
| Built-In Depth (t2) | 110 mm |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108471A4901 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 23.398 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100013X0201 |
| Installation | |
| Instructions and Manuals | 2CPC136385M5601 |
| Mounting Type | Flush mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000214 - Small distribution board |
| ETIM 10 | EC000214 - Small distribution board |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
