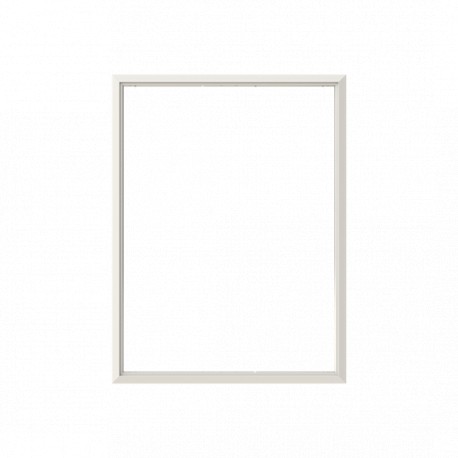

2CPX052410R9999 ABB CR49 Door frame 1100x1050x215(9RU)
2CPX052410R9999
052410
ABB
1 Pcs.
Automation > Door/operating panel (switchgear cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Trim frame serves as an essential structural adapter used around electrical cabinet cutouts to ensure clean panel alignment and secure edge finishing during installation. Manufactured by ABB under part number 2CPX052410R9999, this steel trim frame features a durable powder-coated finish for commercial distribution boards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model Number: Trim frame
- Enclosure Type: Trim frame
- Surface Finishing: Powder-coated
- Material: Steel
- RoHS Declaration: 2CPC100014X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20240903
- REACH Declaration: 2CPC100005X0201
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20240902
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- SCIP: c1c6cccf-ecab-4c6b-8d40-43dd7f14a0e9 Germany
- WEEE Category: Product Not in WEEE Scope; WEEE B2C / B2B: Business To Consumer
- Degree of Protection: IP00
- Product Net Width: 1100 mm
More info
▲| Technical | |
|---|---|
| Model Number | Trim frame |
| Enclosure Type | Trim frame |
| Design | |
| Surface Finishing | Powder-coated |
| Material | Steel |
| Material Compliance | |
| RoHS Declaration | 2CPC100014X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | c1c6cccf-ecab-4c6b-8d40-43dd7f14a0e9 Germany |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP00 |
| Dimensions | |
| Product Net Width | 1100 mm |
| Product Net Height | 1450 mm |
| Product Net Depth / Length | 75 mm |
| Product Net Weight | 6.193 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 6.441 kg |
| E-Number (Norway) | 2414678 |
| E-Number (Sweden) | 2300512 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100014X0201 |
| Installation | |
| Instructions and Manuals | 2CPC133151M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.0 : 27182204 |
| Object Classification Code | U |
