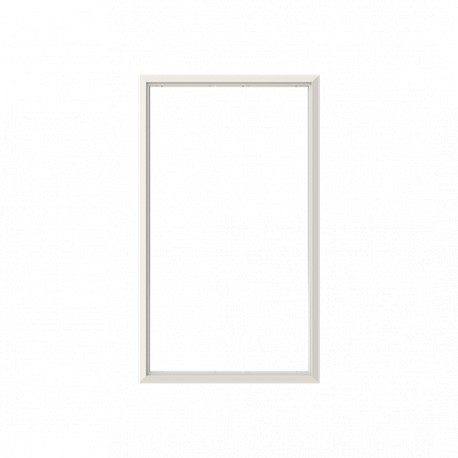

ABB 2CPX052409R9999 2CPX052409R9999 ABB CR39 Door Frame 1100x800x215(9RU) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX052409R9999 ABB CR39 Door Frame 1100x800x215(9RU)

2CPX052409R9999

052409

ABB

1 Pcs.

CR39 Door Frame 1100x800x215(9RU) ComfortLine A accessories Trim frame, IP00, 1450 mm x 850 mm x 75 mm

Automation > Door/operating panel (switchgear cabinet)
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a structural support framework, this trim frame organizes and secures enclosure openings for electrical switchgear assemblies. Frames of this type provide reliable alignment and mechanical reinforcement for modular distribution boards in industrial settings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model Number: Trim frame
  • Enclosure Type: Trim frame
  • Surface Finishing: Powder-coated
  • Material: Steel
  • RoHS Declaration: 2CPC100014X0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20240903
  • REACH Declaration: 2CPC100005X0201
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240902
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • SCIP: f7ac77d1-3824-429c-bbcc-2ce044366c2f Germany
  • WEEE Category: Product Not in WEEE Scope
  • WEEE B2C / B2B: Business To Consumer
  • Degree of Protection: IP00
  • Product Net Width: 850 mm

More info

▲
Technical
Model NumberTrim frame
Enclosure TypeTrim frame
Design
Surface FinishingPowder-coated
MaterialSteel
Material Compliance
RoHS Declaration2CPC100014X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIPf7ac77d1-3824-429c-bbcc-2ce044366c2f Germany
WEEE CategoryProduct Not in WEEE Scope
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP00
Dimensions
Product Net Width850 mm
Product Net Height1450 mm
Product Net Depth / Length75 mm
Product Net Weight5.635 kg
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight5.86 kg
E-Number (Norway)2414677
E-Number (Sweden)2300511
Certificates and Declarations
Declaration of Conformity - CE2CPC100014X0201
Installation
Instructions and Manuals2CPC133151M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
2CPC000377C0101
External Classifications and Standards
ETIM 9EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 10EC000747 - Door/operating panel (enclosure/cabinet)
eClassV11.0 : 27182204
Object Classification CodeU
