View larger
Images are for illustrative purposes only. Please refer to data sheet for details

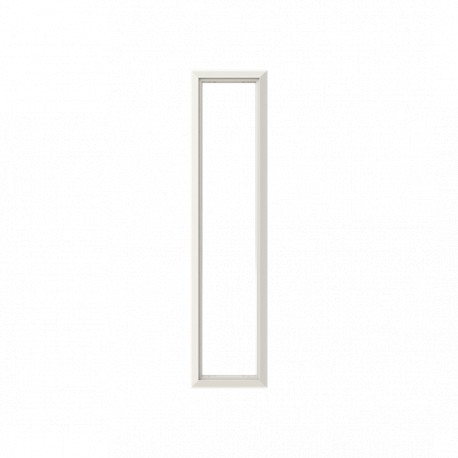

2CPX052407R9999 ABB CR19 Door Frame 1100x300x215(9RU)
2CPX052407R9999
052407
ABB
1 Pcs.
CR19 Door Frame 1100x300x215(9RU)
ComfortLine A accessories Trim frame, IP00, 1450 mm x 350 mm x 75 mm
Automation > Door/operating panel (switchgear cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Model Number | Trim frame |
| Enclosure Type | Trim frame |
| Design | |
| Surface Finishing | Powder-coated |
| Material | Steel |
| Material Compliance | |
| RoHS Declaration | 2CPC100014X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | c94c3c3f-6756-4c3f-9126-2e21580a47af Germany |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP00 |
| Dimensions | |
| Product Net Width | 350 mm |
| Product Net Height | 1450 mm |
| Product Net Depth / Length | 75 mm |
| Product Net Weight | 4.378 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 4.553 kg |
| E-Number (Norway) | 2414675 |
| E-Number (Sweden) | 2300508 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100014X0201 |
| Installation | |
| Instructions and Manuals | 2CPC133151M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.0 : 27182204 |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Version as glazed door (EF006966) | No |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 350 mm |
| Height (EF000040) | 1450 mm |
| Depth (EF000049) | 75 mm |
| EMC-version (EF001062) | No |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Degree of protection (IP) (EF005474) | IP00 |
