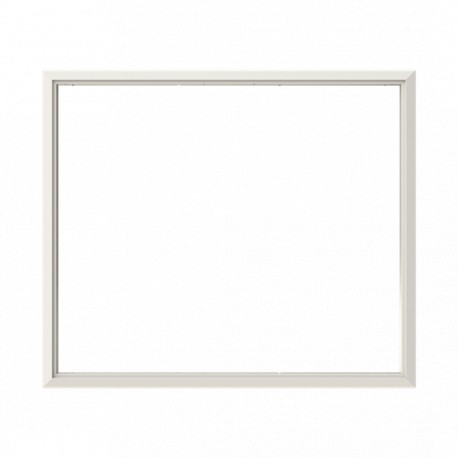

ABB 2CPX052406R9999 2CPX052406R9999 ABB CR57 Door Frame 1100x1300x215(7RU) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX052406R9999 ABB CR57 Door Frame 1100x1300x215(7RU)

2CPX052406R9999

052406

ABB

1 Pcs.

CR57 Door Frame 1100x1300x215(7RU) ComfortLine A accessories Trim frame, IP00, 1150 mm x 1350 mm x 75 mm

Automation > Door/operating panel (switchgear cabinet)
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a secure boundary and structural interface, the ABB 2CPX052406R9999 CR57 door frame establishes a precise mounting perimeter for electrical enclosure systems. Trim frames and support structures ensure proper alignment and mechanical stability when installing modular distribution boards into wall openings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model Number: Trim frame
  • Enclosure Type: Trim frame
  • Surface Finishing: Powder-coated
  • Material: Steel
  • RoHS Declaration: 2CPC100014X0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20240903
  • REACH Declaration: 2CPC100005X0201
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240902
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • SCIP: 1d715c59-7421-4a48-9325-7dcafc1897c9 Germany
  • WEEE Category: Product Not in B2C Scope
  • WEEE B2C / B2B: Business To Consumer
  • Degree of Protection: IP00
  • Product Net Width: 1350 mm

More info

▲
Technical
Model NumberTrim frame
Enclosure TypeTrim frame
Design
Surface FinishingPowder-coated
MaterialSteel
Material Compliance
RoHS Declaration2CPC100014X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIP1d715c59-7421-4a48-9325-7dcafc1897c9 Germany
WEEE CategoryProduct Not in WEEE Scope
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP00
Dimensions
Product Net Width1350 mm
Product Net Height1150 mm
Product Net Depth / Length75 mm
Product Net Weight6.071 kg
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight6.314 kg
E-Number (Norway)2414674
E-Number (Sweden)2300506
Certificates and Declarations
Declaration of Conformity - CE2CPC100014X0201
Installation
Instructions and Manuals2CPC133151M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
2CPC000377C0101
External Classifications and Standards
ETIM 9EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 10EC000747 - Door/operating panel (enclosure/cabinet)
eClassV11.0 : 27182204
Object Classification CodeU

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
