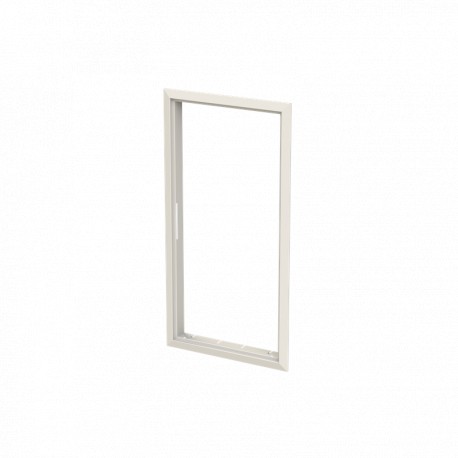

2CPX052403R9999 ABB CR27 Door Frame 1100x550x215(7RU)
2CPX052403R9999
052403
ABB
1 Pcs.
Automation > Door/operating panel (switchgear cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB door frame 2CPX052403R9999 provides structural framing support for mounting and aligning doors within modular distribution panels. Trim frames are typically utilized during switchgear assembly to ensure proper door alignment, structural rigidity, and a clean finish around the enclosure opening.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model Number: Trim frame
- Enclosure Type: Trim frame
- Meter Type:
- Surface Finishing: Powder-coated
- Material: Steel
- RoHS Declaration: 2CPC100014X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20251118
- REACH Declaration: 2CPC100005X0201
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20240902
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- SCIP: 594d3956-9915-4f29-b5f7-8eadf76c3fee Germany
- WEEE Category: Product Not in WEEE Scope
- WEEE B2C / B2B: Business To Consumer
- Degree of Protection: IP00
More info
▲| Technical | |
|---|---|
| Model Number | Trim frame |
| Enclosure Type | Trim frame |
| Meter Type | " |
| Design | |
| Surface Finishing | Powder-coated |
| Material | Steel |
| Material Compliance | |
| RoHS Declaration | 2CPC100014X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20251118 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 594d3956-9915-4f29-b5f7-8eadf76c3fee Germany |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP00 |
| Dimensions | |
| Product Net Width | 600 mm |
| Product Net Height | 1150 mm |
| Product Net Depth / Length | 75 mm |
| Product Net Weight | 4.274 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 4.445 kg |
| E-Number (Norway) | 2414671 |
| E-Number (Sweden) | 2300502 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100014X0201 |
| Installation | |
| Instructions and Manuals | 2CPC133151M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.0 : 27182204 |
| Object Classification Code | U |
