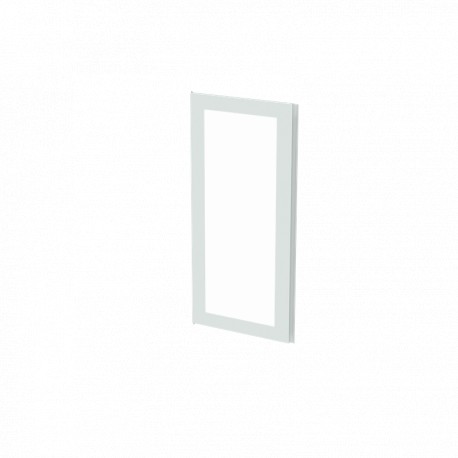

2CPX052348R9999 ABB CTT27 Trans Door. 1100x550x215(7RU)
2CPX052348R9999
052348
ABB
1 Pcs.
Automation > Door/operating panel (switchgear cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This ABB protective door is a specialized steel enclosure access panel designed to shield internal distribution equipment while offering a clean, finished appearance. Access doors are commonly deployed in commercial and industrial electrical housing setups to facilitate safe operator inspection and servicing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model Number: Protective door
- Enclosure Type: Door
- Meter Type:
- Surface Finishing: Powder-coated
- Material: Steel
- Door Material: Steel Sheet
- RAL Number: RAL 9016 - Traffic White
- Color: Traffic white
- RoHS Declaration: 2CPC100014X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20251118
- REACH Declaration: 2CPC100005X0201
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20240902
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: Product Not in WEEE Scope
More info
▲| Technical | |
|---|---|
| Model Number | Protective door |
| Enclosure Type | Door |
| Meter Type | " |
| Design | |
| Surface Finishing | Powder-coated |
| Material | Steel |
| Door Material | Steel Sheet |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Material Compliance | |
| RoHS Declaration | 2CPC100014X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20251118 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP44 |
| Dimensions | |
| Product Net Width | 498 mm |
| Product Net Height | 1071 mm |
| Product Net Depth / Length | 14 mm |
| Product Net Weight | 2.83 kg |
| Section Width | 2 |
| Dimension Diagram | 2CPC000020D0201 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 2.943 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100014X0201 |
| Installation | |
| Instructions and Manuals | 2CPC133152M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.0 : 27182204 |
| Object Classification Code | U |
