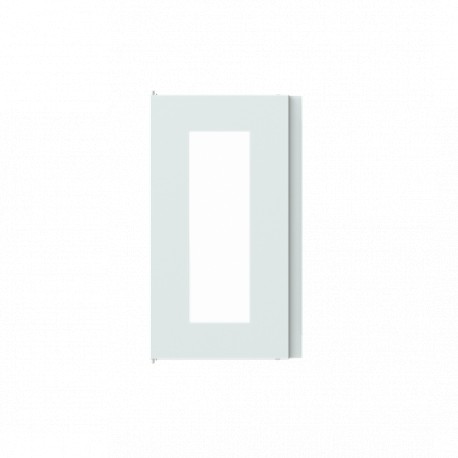

2CPX052339R9999 ABB CTT13 Trans Door. 500x300x215(3RU)
2CPX052339R9999
052339
ABB
1 Pcs.
Automation > Door/operating panel (switchgear cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Protective door solutions like the Abb 2CPX052339R9999 steel unit shield low-voltage distribution modules from physical impacts and dust. Modular protective doors are standard additions to residential and commercial electrical installation boards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model Number: Protective door
- Enclosure Type: Door
- Surface Finishing: Powder-coated
- Material: Steel
- Door Material: Steel Sheet
- RAL Number: RAL 9016 - Traffic White
- Color: Traffic white
- RoHS Declaration: 2CPC100014X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20240903
- REACH Declaration: 2CPC100005X0201
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20240902
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: Product Not in WEEE Scope
- WEEE B2C / B2B: Business To Consumer
More info
▲| Technical | |
|---|---|
| Model Number | Protective door |
| Enclosure Type | Door |
| Design | |
| Surface Finishing | Powder-coated |
| Material | Steel |
| Door Material | Steel Sheet |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Material Compliance | |
| RoHS Declaration | 2CPC100014X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP44 |
| Dimensions | |
| Product Net Width | 248 mm |
| Product Net Height | 471 mm |
| Product Net Depth / Length | 14 mm |
| Product Net Weight | 1.106 kg |
| Section Width | 1 |
| Dimension Diagram | 2CPC000020D0201 |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 1.15 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100014X0201 |
| Installation | |
| Instructions and Manuals | 2CPC133152M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| eClass | V11.0 : 27182204 |
| Object Classification Code | U |
