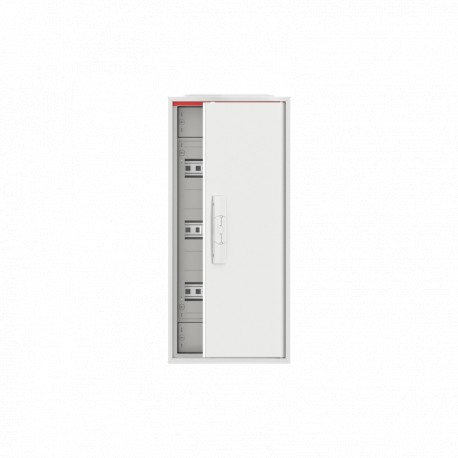

ABB 2CPX052229R9999 2CPX052229R9999 ABB CA14R Arm.superf.36mod(150mm) pta.met. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX052229R9999 ABB CA14R Arm.superf.36mod(150mm) pta.met.

2CPX052229R9999

052229

ABB

1 Pcs.

CA14R Arm.superf.36mod(150mm) pta.met. compact distribution boards, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP44, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, metal door , door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 650 x 300 x 160, Grid unit 4 GU, panel width 1, 3-rows, Space units 36, Row distance in mm: 150, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable

Automation > Small distribution board
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB part number 2CPX052229R9999 is a surface-mounted compact distribution board designed to organize electrical control gear and modular circuit protection. Such enclosures are deployed in commercial buildings to maintain neat and accessible branch circuit arrangements.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of rows (EF000266): 3
  • Width in number of modular spacings (EF002950): 12
  • Type of covering (EF000339): Door
  • Cover model (EF009212): Closed
  • Transparent cover/door (EF006244): No
  • Housing material (EF001596): Steel
  • Height (EF000040): 650 mm
  • Width (EF000008): 300 mm
  • Depth (EF000049): 160 mm
  • Built-in depth (EF000218): 0 mm
  • Built-in height (EF000332): 0 mm
  • Built-in width (EF000846): 0 mm
  • Inner depth (EF001131): 152 mm
  • Earthing terminal block (EF015776): Yes
  • Neutral terminal block (EF015777): Yes
  • DIN-rail (EF001134): Yes

More info

▲

b'

General Information

Extended Product Type:
CA14R
Product ID:
2CPX052229R9999
EAN:
4011617522294
Catalog Description:
CA14R      Comp.DB 1PW 3R IP44
Long Description:
compact distribution boards, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP44, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, metal door , door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 650 x 300 x 160, Grid unit 4 GU, panel width 1, 3-rows, Space units 36, Row distance in mm: 150, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable
\n

Ordering

EAN:
4011617522294
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85381000

Dimensions

Product Net Width:
300 mm
Product Net Height:
650 mm
Product Net Depth / Length:
160 mm
Product Net Weight:
9.161 kg

Container Information

Package Level 1 Units:
pack 1 piece
Package Level 1 Width:
306.000 mm
Package Level 1 Height:
652.000 mm
Package Level 1 Depth / Length:
165.000 mm
Package Level 1 Gross Weight:
9.527 kg
Package Level 1 EAN:
4011617522294
Package Level 2 Units:
pallet (lift) 34 piece
Package Level 2 Width:
800.000 mm
Package Level 2 Height:
1800.000 mm
Package Level 2 Depth / Length:
1200.000 mm
Package Level 2 Gross Weight:
331.474 kg

Additional Information

Color:
White
Cover Plate Type:
Door
Degree of Protection:
IP44
DIN Place Units:
36
Enclosure Type:
compact distribution boards
Field Width:
1
Housing Material:
Steel
Interior Depth:
152 mm
Number of Rows:
3
Power Loss:
Δt = 20K 31.8 W

Δt = 25K 41.9 W

Δt = 30K 52.6 W
Product Main Type:
ComfortLine Compact CA
Product Name:
CA14R      Comp.DB 1PW 3R IP44
Protection Class:
Isolated
Rated Operational Voltage:
Maximum 400 V

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n9AKK107680A4771
Instructions and Manuals:\n2CPC133150M5601

Classifications

ETIM 6:
EC000214 - Small distribution board
ETIM 7:
EC000214 - Small distribution board
Object Classification Code:
U
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
\n
'

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
