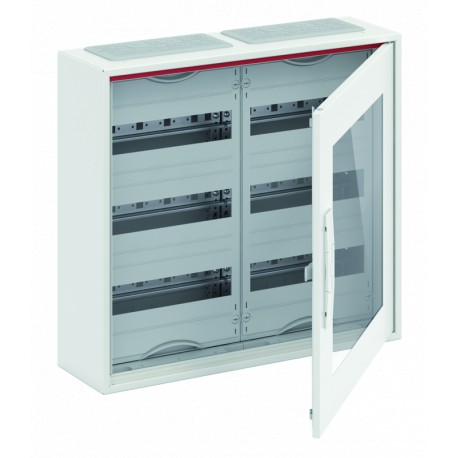

ABB 2CPX052201R9999 2CPX052201R9999 ABB CA23VT Arm.superf.72mod(125mm) pta.tra. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX052201R9999 ABB CA23VT Arm.superf.72mod(125mm) pta.tra.

2CPX052201R9999

052201

ABB

1 Pcs.

CA23VT Arm.superf.72mod(125mm) pta.tra. compact distribution boards, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP44, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, transparent door, door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 500 x 550 x 160, Grid unit 3 GU, panel width 2, 3-rows, Space units 72, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable

Automation > Small distribution board
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
CA23VT
Product ID:
2CPX052201R9999
EAN:
4011617522010
Catalog Description:
CA23VT     Comp.DB 2PW 3R trans.door
Long Description:
compact distribution boards, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP44, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, transparent door, door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 500 x 550 x 160, Grid unit 3 GU, panel width 2, 3-rows, Space units 72, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable
\n

Ordering

EAN:
4011617522010
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85381000

Dimensions

Product Net Width:
550 mm
Product Net Height:
500 mm
Product Net Depth / Length:
160 mm
Product Net Weight:
11.961 kg

Container Information

Package Level 1 Units:
pack 1 piece
Package Level 1 Width:
556.000 mm
Package Level 1 Height:
502.000 mm
Package Level 1 Depth / Length:
165.000 mm
Package Level 1 Gross Weight:
12.439 kg
Package Level 1 EAN:
4011617522010
Package Level 2 Units:
pallet (lift) 26 piece
Package Level 2 Width:
800.000 mm
Package Level 2 Height:
1800.000 mm
Package Level 2 Depth / Length:
1200.000 mm

Additional Information

Color:
White
Cover Plate Type:
Door
Degree of Protection:
IP44
DIN Place Units:
72
Enclosure Type:
compact distribution boards
Field Width:
2
Housing Material:
Steel
Interior Depth:
152 mm
Number of Rows:
3
Power Loss:
Δt = 20K 43.5 W

Δt = 25K 57.5 W

Δt = 30K 72.1 W
Product Main Type:
ComfortLine Compact CA
Product Name:
CA23VT     Comp.DB 2PW 3R trans.door
Protection Class:
Isolated
Rated Operational Voltage:
Maximum 400 V

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n9AKK107680A4771
Instructions and Manuals:\n2CPC133150M5601

Classifications

ETIM 6:
EC000214 - Small distribution board
ETIM 7:
EC000214 - Small distribution board
Object Classification Code:
U
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
\n
'

ETIM for 2CPX052201R9999 Distribution boards (EC000214)
Feature Name Feature Value
Mounting method (EF000003) Other
Number of rows (EF000266) 3
Width in number of modular spacings (EF002950) 24
Type of covering (EF000339) Door
Cover model (EF009212) Closed
Transparent cover/door (EF006244) Yes
Housing material (EF001596) Steel
Height (EF000040) 500 mm
Width (EF000008) 550 mm
Depth (EF000049) 160 mm
Built-in depth (EF000218) 0 mm
Built-in height (EF000332) 0 mm
Built-in width (EF000846) 0 mm
Inner depth (EF001131) 152 mm
Earthing terminal block (EF015776) Yes
Neutral terminal block (EF015777) Yes
DIN-rail (EF001134) Yes
With mounting plate (EF000118) No
Extension possible (EF001088) Yes
EMC-version (EF001062) No
Colour (EF000007) White
RAL-number (EF000116) 9016
Degree of protection (IP) (EF005474) IP44
With lock (EF006306) Yes
Type of closure (EF004462) Other
Signal passing door (EF015941) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
