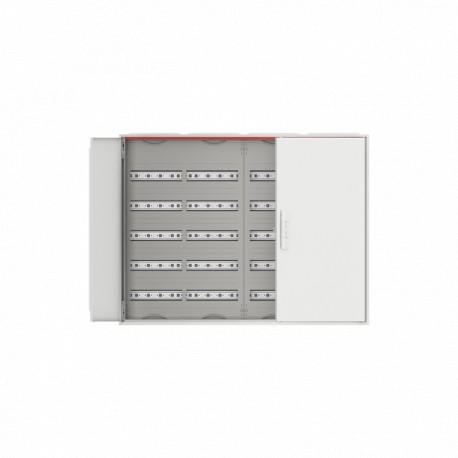

2CPX052195R9999 ABB CA45V Arm.superf.240mod(125mm) pta.met.
2CPX052195R9999
052195
ABB
1 Pcs.
Automation > Small distribution board
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB CA45V Arm.superf.240mod(125mm) pta.met. (part 2CPX052195R9999) is a large surface-mounted modular distribution cabinet built to house high-density electrical protection and switching equipment. Industrial distribution enclosures organize complex wiring infrastructures and provide secure metallic housing for high-capacity power networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Entrances: Socket Outlet 0
- Number of Rows: 55
- Closure Type: Turn Handle
- Configuration Type: Assembled with distribution module
- Cover Plate Type: Door
- Enclosure Type: Compact distribution board
- Meter Type: "
- Door Type: Double
- Accessories Available: Yes
- DIN Place Units: 240
- Terminal Type: Quick-Terminal
- Impact Resistance Rating: IK07
- Rated Operational Voltage: Maximum 400 V
- Operational Voltage: 400 V
- Rated Current (I n ): 125 A
- Power Loss: Δt = 20K 84.3 W
More info
▲| Technical | |
|---|---|
| Number of Entrances | Socket Outlet 0 |
| Number of Rows | 55 |
| Closure Type | Turn Handle |
| Configuration Type | Assembled with distribution module |
| Cover Plate Type | Door |
| Enclosure Type | Compact distribution board |
| Meter Type | " |
| Door Type | Double |
| Accessories Available | Yes |
| DIN Place Units | 240 |
| Terminal Type | Quick-Terminal |
| Impact Resistance Rating | IK07 |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Current (In) | 125 A |
| Power Loss | Δt = 20K 84.3 W |
| Δt = 25K 111.3 W | |
| Δt = 30K 131.4 W | |
| Total 84.3 W | |
| Design | |
| Surface Finishing | Powder-coated |
| Housing Material | Steel |
| Door Material | Steel Sheet |
| Cover Style | Closed |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Number of Modules | 240 |
| Material Compliance | |
| RoHS Declaration | 2CPC100012X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP44 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 48 |
| Product Net Width | 1050 mm |
| Product Net Height | 800 mm |
| Product Net Depth / Length | 160 mm |
| Product Net Weight | 29.591 kg |
| Section Width | 4 |
| Built-In Depth (t2) | 0 mm |
| Dimension Diagram | 2CPC000012D0201 |
| Engineering | |
| EPLAN Data | 9AAF603718_EPLAN |
| Building Information Modeling – BIM | 9AKK107680A4427 |
| 9AKK107680A4426 | |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 30.775 kg |
| E-Number (Norway) | 2414614 |
| E-Number (Sweden) | 2300378 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100012X0201 |
| Installation | |
| Instructions and Manuals | 2CPC130114M5601 |
| 2CPC133150M5601 | |
| Mounting Type | Surface mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000214 - Small distribution board |
| ETIM 10 | EC000214 - Small distribution board |
| eClass | V11.0 : 27142409 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
