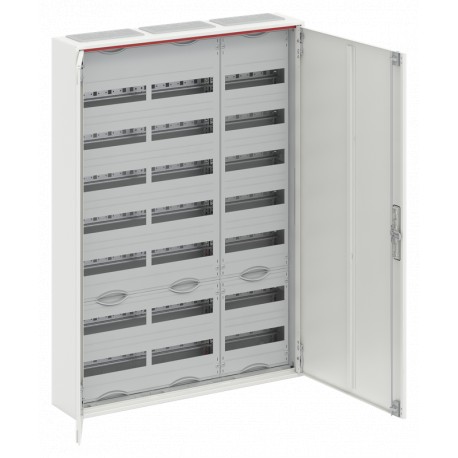

2CPX052193R9999 ABB CA37V Arm.superf.252mod(125mm) pta.met.
2CPX052193R9999
052193
ABB
1 Pcs.
Automation > Small distribution board
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Compact distribution board, model 2CPX052193R9999 by Abb, functions as a heavy-duty housing unit for complex electrical control setups and modular component integration. These high-capacity enclosures provide safe mechanical protection and streamlined cable routing for industrial panels. Final pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of Rows: 77
- Closure Type: Turn Handle
- Configuration Type: Assembled with distribution module
- Cover Plate Type: Door
- Enclosure Type: Compact distribution board
- Meter Type: "
- Door Type: Double
- Accessories Available: Yes
- DIN Place Units: 252
- Terminal Type: Quick-Terminal
- Impact Resistance Rating: IK07
- Rated Operational Voltage: Maximum 400 V
- Operational Voltage: 400 V
- Rated Current (I n ): 125 A
- Power Loss: Δt = 20K: 80.6 W
- Surface Finishing: Powder-coated
More info
▲| Technical | |
|---|---|
| Number of Rows | 77 |
| Closure Type | Turn Handle |
| Configuration Type | Assembled with distribution module |
| Cover Plate Type | Door |
| Enclosure Type | Compact distribution board |
| Meter Type | " |
| Door Type | Double |
| Accessories Available | Yes |
| DIN Place Units | 252 |
| Terminal Type | Quick-Terminal |
| Impact Resistance Rating | IK07 |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Current (In) | 125 A |
| Power Loss | Δt = 20K 80.6 W |
| Δt = 25K 106.4 W | |
| Δt = 30K 125.7 W | |
| Total 80.6 W | |
| Design | |
| Surface Finishing | Powder-coated |
| Housing Material | Steel |
| Door Material | Steel Sheet |
| Cover Style | Closed |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Number of Modules | 252 |
| Material Compliance | |
| RoHS Declaration | 2CPC100012X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP44 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 36 |
| Product Net Width | 800 mm |
| Product Net Height | 1100 mm |
| Product Net Depth / Length | 160 mm |
| Product Net Weight | 29.825 kg |
| Section Width | 3 |
| Built-In Depth (t2) | 0 mm |
| Dimension Diagram | 2CPC000012D0201 |
| Engineering | |
| EPLAN Data | 9AAF603718_EPLAN |
| Building Information Modeling – BIM | 9AKK107680A4427 |
| 9AKK107680A4426 | |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 31.018 kg |
| E-Number (Norway) | 2414612 |
| E-Number (Sweden) | 2300376 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100012X0201 |
| Installation | |
| Instructions and Manuals | 2CPC130114M5601 |
| 2CPC133150M5601 | |
| Mounting Type | Surface mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000214 - Small distribution board |
| ETIM 10 | EC000214 - Small distribution board |
| eClass | V11.0 : 27142409 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
