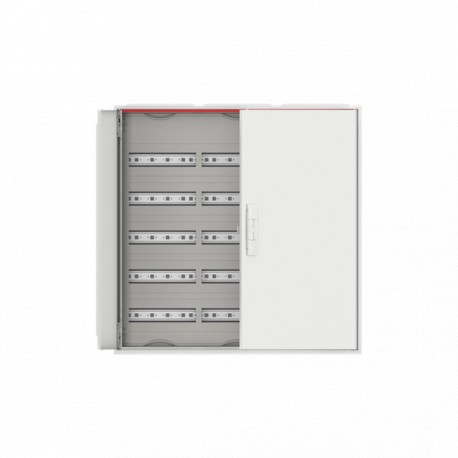

2CPX052191R9999 ABB CA35V Arm.superf.180mod(125mm) pta.met.

2CPX052191R9999

052191

ABB

1 Pcs.

CA35V Arm.superf.180mod(125mm) pta.met. ComfortLine Compact distribution board, Surface mounting, 180 SU, Isolated (Class II), IP44, Rows: 5, 800 mm x 800 mm x 160 mm

Automation > Small distribution board
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb CA35V Arm.superf.180mod(125mm) pta.met. (part number: 2CPX052191R9999) functions as a high-capacity compact distribution board designed to organize extensive modular wiring layouts in major electrical installations. These heavy-duty steel enclosures safely group hundreds of DIN-rail components and distribution modules under lock and key.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of Rows: 5
  • Closure Type: Turn Handle
  • Configuration Type: Assembled with distribution module
  • Cover Plate Type: Door
  • Enclosure Type: Compact distribution board
  • Door Type: Double
  • Accessories Available: Yes
  • DIN Place Units: 180
  • Terminal Type: Quick-Terminal
  • Rated Operational Voltage: Maximum 400 V
  • Operational Voltage: 400 V
  • Rated Current (I n ): 125 A
  • Power Loss: Δt = 20K 61.4 W
  • Surface Finishing: Powder-coated
  • Housing Material: Steel
  • Door Material: Steel Sheet

More info

▲
Technical
Number of Rows5
Closure TypeTurn Handle
Configuration TypeAssembled with distribution module
Cover Plate TypeDoor
Enclosure TypeCompact distribution board
Door TypeDouble
Accessories AvailableYes
DIN Place Units180
Terminal TypeQuick-Terminal
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Rated Current (In)125 A
Power LossΔt = 20K 61.4 W
Δt = 25K 81 W
Δt = 30K 95.7 W
Design
Surface FinishingPowder-coated
Housing MaterialSteel
Door MaterialSteel Sheet
Cover StyleClosed
RAL NumberRAL 9016 - Traffic White
ColorTraffic white
Number of Modules180
Material Compliance
RoHS Declaration2CPC100012X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP44
Protection ClassIsolated (Class II)
Dimensions
Width in Number of Modular Spacings36
Product Net Width800 mm
Product Net Height800 mm
Product Net Depth / Length160 mm
Product Net Weight23.614 kg
Section Width3
Built-In Depth (t2)0 mm
Dimension Diagram2CPC000012D0201
Engineering
EPLAN Data9AAF603718_EPLAN
Building Information Modeling – BIM9AKK107680A4427
9AKK107680A4426
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight24.559 kg
E-Number (Norway)2414610
E-Number (Sweden)2300374
Certificates and Declarations
Declaration of Conformity - CE2CPC100012X0201
Installation
Instructions and Manuals2CPC130114M5601
2CPC133150M5601
Mounting TypeSurface mounting
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
2CPC000377C0101
External Classifications and Standards
ETIM 9EC000214 - Small distribution board
ETIM 10EC000214 - Small distribution board
eClassV11.0 : 27142409
Object Classification CodeU
StandardsDIN EN 61439-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
