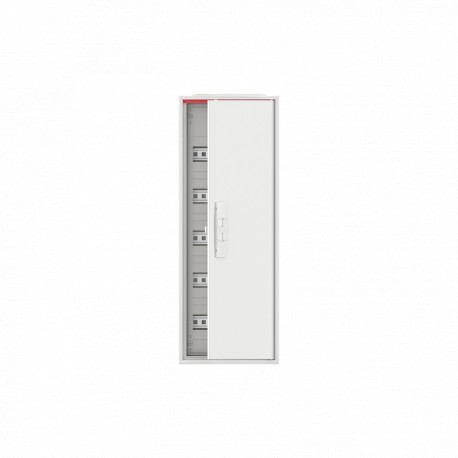

2CPX052182R9999 ABB CA15V Arm.superf.60mod(125mm) pta.met.

2CPX052182R9999

052182

ABB

1 Pcs.

CA15V Arm.superf.60mod(125mm) pta.met. ComfortLine Compact distribution board, Surface mounting, 60 SU, Isolated (Class II), IP44, Field Width: 1, Rows: 55, 800 mm x 300 mm x 160 mm

Automation > Small distribution board
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 2CPX052182R9999 CA15V arm.superf.60mod is a compact distribution board engineered to house modular protection equipment in commercial and light industrial building setups. Pre-assembled distribution enclosures simplify electrical installation tasks by grouping circuit breakers and terminal connections in a single protected housing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of Entrances: Socket Outlet 0
  • Number of Rows: 55
  • Closure Type: Turn Handle
  • Configuration Type: Assembled with distribution module
  • Cover Plate Type: Door
  • Enclosure Type: Compact distribution board
  • Meter Type:
  • Door Type: Single
  • Accessories Available: Yes
  • DIN Place Units: 60
  • Terminal Type: Quick-Terminal
  • Impact Resistance Rating: IK07
  • Rated Operational Voltage: Maximum 400 V
  • Operational Voltage: 400 V
  • Rated Current (I n ): 125 A
  • Power Loss: Δt = 20K - Enclosures 37.6 W

More info

▲
Technical
Number of EntrancesSocket Outlet 0
Number of Rows55
Closure TypeTurn Handle
Configuration TypeAssembled with distribution module
Cover Plate TypeDoor
Enclosure TypeCompact distribution board
Meter Type"
Door TypeSingle
Accessories AvailableYes
DIN Place Units60
Terminal TypeQuick-Terminal
Impact Resistance RatingIK07
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Rated Current (In)125 A
Power LossΔt = 20K - Enclosures 37.6 W
Δt = 25K - Enclosures 49.7 W
Δt = 30K - Enclosures 62.3 W
Total 37.6 W
Design
Surface FinishingPowder-coated
Housing MaterialSteel
Door MaterialSteel Sheet
Cover StyleClosed
RAL NumberRAL 9016 - Traffic White
ColorTraffic white
Number of Modules60
Material Compliance
RoHS Declaration2CPC100012X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20251118
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP44
Protection ClassIsolated (Class II)
Dimensions
Width in Number of Modular Spacings12
Product Net Width300 mm
Product Net Height800 mm
Product Net Depth / Length160 mm
Product Net Weight10.833 kg
Section Width1
Built-In Depth (t2)0 mm
Dimension Diagram2CPC000012D0201
Engineering
EPLAN Data9AAF603718_EPLAN
Building Information Modeling – BIM9AKK107680A4427
9AKK107680A4426
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight11.266 kg
E-Number (Norway)2414602
E-Number (Sweden)2300361
Certificates and Declarations
Declaration of Conformity - CE2CPC100012X0201
Installation
Instructions and Manuals2CPC130114M5601
2CPC133150M5601
Mounting TypeSurface mounting
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
2CPC000377C0101
External Classifications and Standards
ETIM 9EC000214 - Small distribution board
ETIM 10EC000214 - Small distribution board
eClassV11.0 : 27142409
Object Classification CodeU
StandardsDIN EN 61439-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
