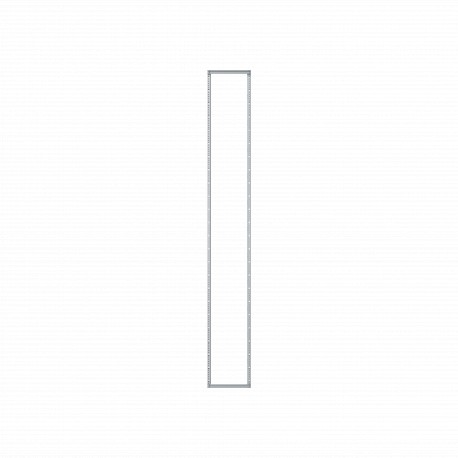

ABB 2CPX042858R9999 2CPX042858R9999 ABB WR181 Frame WR A 250,arm. prof. 225mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX042858R9999 ABB WR181 Frame WR A 250,arm. prof. 225mm

2CPX042858R9999

042858

ABB

1 Pcs.

WR181 Frame WR A 250,arm. prof. 225mm 1800 mm x 250 mm x 1800 mm , 9 , 1

Automation > Profile (switchgear cabinet)
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB 2CPX042858R9999 WR181 frame profile serves as a core structural element for modular distribution systems, allowing engineers to build customized electrical assemblies. Frame profiles of this design provide reliable mechanical support for internal chassis equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model Number: Mounting rail
  • Number of Panel Heights: 12
  • Enclosure Type: Slide rails
  • Enclosure Type of Height: 9
  • Meter Type:
  • Surface Finishing: Galvanised
  • Material: Steel
  • RoHS Declaration: 2CPC100019X0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20250916
  • REACH Declaration: 2CPC100005X0201
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240902
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: Product Not in WEEE Scope
  • Product Net Width: 250 mm

More info

▲
Technical
Model NumberMounting rail
Number of Panel Heights12
Enclosure TypeSlide rails
Enclosure Type of Height9
Meter Type"
Design
Surface FinishingGalvanised
MaterialSteel
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250916
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width250 mm
Product Net Height1800 mm
Product Net Depth / Length1800 mm
Product Net Weight5.501 kg
Section Width1
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight5.721 kg
E-Number (Norway)2444465
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Instructions and Manuals2CPC119766M5601
Mounting TypeScrew mounting
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC002518 - Profile (enclosure/cabinet)
ETIM 10EC002518 - Profile (enclosure/cabinet)
eClassV11.0 : 27180907
Object Classification CodeU

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
