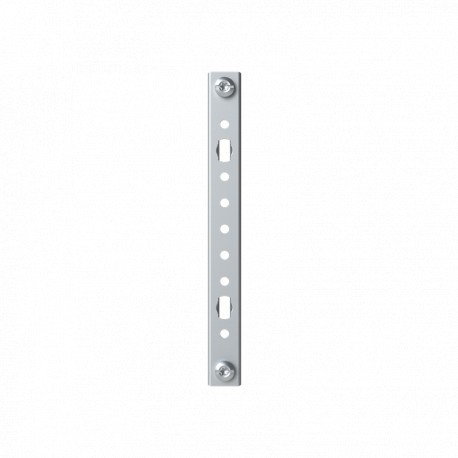

ABB 2CPX041865R9999 2CPX041865R9999 ABB ED7 EDF Rack cabinet 1 row, H 150 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX041865R9999 ABB ED7 EDF Rack cabinet 1 row, H 150

2CPX041865R9999

041865

ABB

1 Pcs.

ED7 EDF Rack cabinet 1 row, H=150 150 mm x 150 mm x 150 mm , 0000

Automation > Profile (switchgear cabinet)
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 2CPX041865R9999 ABB ED1 EDF Rack cabinet 1 row, H 150 by Abb is an internal cabinet infrastructure component designed for organizing and supporting electrical distribution equipment within modular panel boards. Racks of this type provide a secure mechanical foundation for mounting modular devices and terminal blocks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model Number: Mounting rail
  • Number of Panel Heights: 1
  • Enclosure Type: Slide rails
  • Enclosure Type of Height: 0000
  • Meter Type:
  • DIN Place Units: 0
  • Meter Boards: 0
  • Surface Finishing: Galvanised
  • Material: Steel
  • RoHS Declaration: 2CPC100019X0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20250916
  • REACH Declaration: 2CPC100005X0201
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240902
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363

More info

▲
Technical
Model NumberMounting rail
Number of Panel Heights1
Enclosure TypeSlide rails
Enclosure Type of Height0000
Meter Type"
DIN Place Units0
Meter Boards0
Design
Surface FinishingGalvanised
MaterialSteel
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250916
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width150 mm
Product Net Height150 mm
Product Net Depth / Length150 mm
Product Net Weight0.168 kg
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.168 kg
E-Number (Norway)2407816
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Mounting TypeScrew mounting
Mounting Positionvertical
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC002518 - Profile (enclosure/cabinet)
ETIM 10EC002518 - Profile (enclosure/cabinet)
eClassV11.0 : 27180907
Object Classification CodeU

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
