View larger
Images are for illustrative purposes only. Please refer to data sheet for details

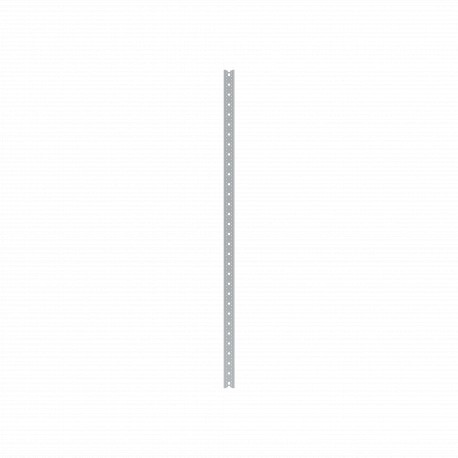

2CPX041857R9999 ABB WR FRAME 1200 MM HIGH
2CPX041857R9999
041857
ABB
1 Pcs.
WR FRAME 1200 MM HIGH
1200 mm x 1200 mm x 1200 mm , 4
Automation > Profile (switchgear cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Model Number | Mounting rail |
| Number of Panel Heights | 8 |
| Enclosure Type | Slide rails |
| Enclosure Type of Height | 4 |
| Meter Type | " |
| DIN Place Units | 0 |
| Meter Boards | 0 |
| Design | |
| Surface Finishing | Galvanised |
| Material | Steel |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 1200 mm |
| Product Net Height | 1200 mm |
| Product Net Depth / Length | 1200 mm |
| Product Net Weight | 1.568 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 1.568 kg |
| E-Number (Norway) | 2408010 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Mounting Type | Screw mounting |
| Mounting Position | vertical |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC002518 - Profile (enclosure/cabinet) |
| ETIM 10 | EC002518 - Profile (enclosure/cabinet) |
| eClass | V11.0 : 27180907 |
| Object Classification Code | U |
