View larger
Images are for illustrative purposes only. Please refer to data sheet for details

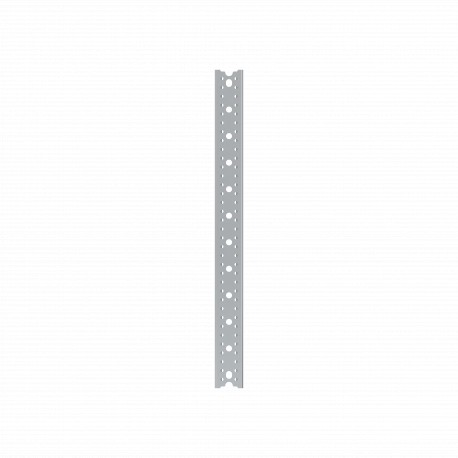

2CPX041852R9999 ABB WR FRAME 450 MM HIGH
2CPX041852R9999
041852
ABB
1 Pcs.
WR FRAME 450 MM HIGH
450 mm x 450 mm x 450 mm , 00
Automation > Profile (switchgear cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Model Number | Mounting rail |
| Number of Panel Heights | 3 |
| Enclosure Type | Slide rails |
| Enclosure Type of Height | 00 |
| Meter Type | " |
| DIN Place Units | 0 |
| Meter Boards | 0 |
| Design | |
| Surface Finishing | Galvanised |
| Material | Steel |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 450 mm |
| Product Net Height | 450 mm |
| Product Net Depth / Length | 450 mm |
| Product Net Weight | 0.589 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.589 kg |
| E-Number (Norway) | 2408005 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Mounting Type | Screw mounting |
| Mounting Position | vertical |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC002518 - Profile (enclosure/cabinet) |
| ETIM 10 | EC002518 - Profile (enclosure/cabinet) |
| eClass | V11.0 : 27180907 |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Number of height units (EF003561) | 3 |
| Model (EF000010) | Other |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Other |
| Length (EF001438) | 450 mm |
| Stepless mounting (EF001086) | No |
| Mounting method (EF000003) | Screw mounting |
| Profile height busbar (EF008269) | 40 mm |
