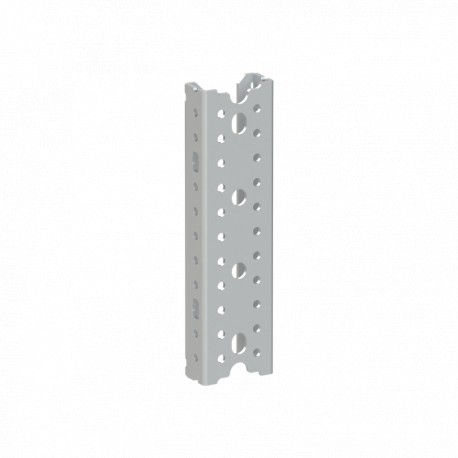

ABB 2CPX041850R9999 2CPX041850R9999 ABB WR frame 150 mm high View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX041850R9999 ABB WR frame 150 mm high

2CPX041850R9999

041850

ABB

1 Pcs.

WR frame 150 mm high 150 mm x 150 mm x 150 mm , 0000

Automation > Profile (switchgear cabinet)
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A WR frame 150 mm high functions as an adaptable interior subframe structure within electrical distribution boards, offering structured slide rails to hold modular functional modules. This Abb 2CPX041850R9999 assembly simplifies the organization of low-voltage switchgear.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model Number: Mounting rail
  • Number of Panel Heights: 1
  • Enclosure Type: Slide rails
  • Enclosure Type of Height: 0000
  • DIN Place Units: 0
  • Meter Boards: 0
  • Surface Finishing: Galvanised
  • Material: Steel
  • RoHS Declaration: 2CPC100019X0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20240903
  • REACH Declaration: 2CPC100005X0201
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240902
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: Product Not in WEEE Scope

More info

▲
Technical
Model NumberMounting rail
Number of Panel Heights1
Enclosure TypeSlide rails
Enclosure Type of Height0000
DIN Place Units0
Meter Boards0
Design
Surface FinishingGalvanised
MaterialSteel
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width150 mm
Product Net Height150 mm
Product Net Depth / Length150 mm
Product Net Weight0.197 kg
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.197 kg
E-Number (Norway)2408003
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Mounting TypeScrew mounting
Mounting Positionvertical
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC002518 - Profile (enclosure/cabinet)
ETIM 10EC002518 - Profile (enclosure/cabinet)
eClassV11.0 : 27180907
Object Classification CodeU

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
