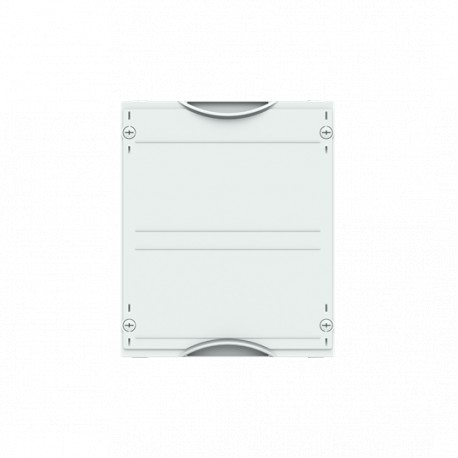

ABB 2CPX041807R9999 2CPX041807R9999 ABB Universal Module p/ Int./Disj. Mont. see View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX041807R9999 ABB Universal Module p/ Int./Disj. Mont. see

2CPX041807R9999

041807

ABB

1 Pcs.

Universal Module p/ Int./Disj. Mont. see Universal switch unequipped 300 mm x 250 mm x 120 mm , 000

Automation > Distributor assembly switch
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Abb under part number 2CPX041807R9999, this Universal Module p/ Int./Disj. Mont. see serves as an interior fitting module designed to organize and structure electrical distribution enclosures. Such modules typically provide a secure internal framework for mounting circuit breakers, switches, and other modular components within industrial switchgear assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated Operational Current (I e ): 250 A
  • Number of Switches: 0
  • Number of Mountable Devices: 1
  • Enclosure Module Equipment: Excludes Devices
  • Enclosure Mounting Frame: WR or EDF
  • Device: OT250E
  • Enclosure Type: Interior fitting module
  • Enclosure Type of Height: 000
  • DIN Place Units: 24
  • Meter Boards: 0
  • Module Function: Universal switch unequipped
  • Rated Operational Voltage: Maximum 400 V
  • Operational Voltage: 400 V
  • Rated Current (I n ): 250 A
  • Color: Light grey
  • Number of Modules: 24

More info

▲
Technical
Rated Operational Current (Ie)250 A
Number of Switches0
Number of Mountable Devices1
Enclosure Module EquipmentExcludes Devices
Enclosure Mounting FrameWR or EDF
DeviceOT250E
Enclosure TypeInterior fitting module
Enclosure Type of Height000
DIN Place Units24
Meter Boards0
Module FunctionUniversal switch unequipped
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Rated Current (In)250 A
Design
ColorLight grey
Number of Modules24
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width250 mm
Product Net Height300 mm
Product Net Depth / Length120 mm
Product Net Weight1.07 kg
Section Width1
Built-In Depth (t2)200 mm
Engineering
EPLAN Data9AAF623206_EPLAN
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight1.07 kg
E-Number (Norway)2444459
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Instructions and Manuals2CPC112298M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC001897 - Distributor assembly switch
ETIM 10EC001897 - Distributor assembly switch
eClassV11.0 : 27400611
Object Classification CodeU
StandardsDIN EN 61439-3
DIN EN 61439-2
