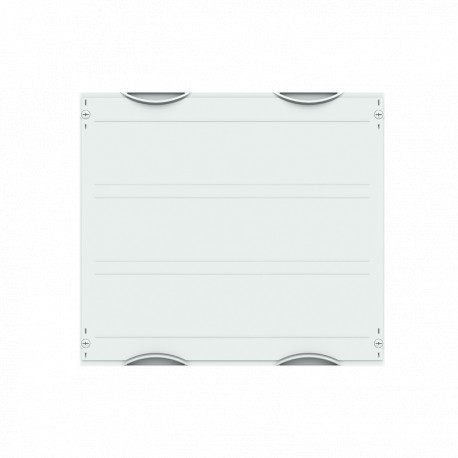

ABB 2CPX041805R9999 2CPX041805R9999 ABB MBA630ALA Kit section.400-630A,H450xA500 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX041805R9999 ABB MBA630ALA Kit section.400-630A,H450xA500

2CPX041805R9999

041805

ABB

1 Pcs.

MBA630ALA Kit section.400-630A,H450xA500 Switch disconnector OT not connected 450 mm x 500 mm x 260 mm , 00 , 2

Automation > Distributor assembly switch
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 2CPX041805R9999 ABB MBA630ALA Kit section.400-630A,H450xA500 is an interior fitting module designed to support switch disconnectors and heavy-duty switching hardware within industrial distribution enclosures. Such modular inserts allow engineers to structure panel interiors cleanly while supporting safe and organized electrical layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated Operational Current (I e ): 630 A
  • Number of Poles: 4P
  • Number of Switches: 0
  • Number of Mountable Devices: 1
  • Enclosure Module Equipment: Excludes Devices
  • Enclosure Mounting Frame: WR
  • Device: OT630E
  • Enclosure Type: Interior fitting module
  • Enclosure Type of Height: 00
  • Meter Type:
  • DIN Place Units: 72
  • Meter Boards: 0
  • Module Function: Switch disconnector OT not connected
  • Rated Operational Voltage: Maximum 400 V
  • Operational Voltage: 400 V
  • Rated Insulation Voltage (U i ): 690 V

More info

▲
Technical
Rated Operational Current (Ie)630 A
Number of Poles4P
Number of Switches0
Number of Mountable Devices1
Enclosure Module EquipmentExcludes Devices
Enclosure Mounting FrameWR
DeviceOT630E
Enclosure TypeInterior fitting module
Enclosure Type of Height00
Meter Type"
DIN Place Units72
Meter Boards0
Module FunctionSwitch disconnector OT not connected
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Rated Insulation Voltage (Ui)690 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Current (In)630 A
Design
ColorLight grey
Number of Modules72
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250916
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width500 mm
Product Net Height450 mm
Product Net Depth / Length260 mm
Product Net Weight3.37 kg
Section Width2
Built-In Depth (t2)275 mm
Engineering
EPLAN Data9AAF623206_EPLAN
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight3.37 kg
E-Number (Norway)2444455
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Instructions and Manuals2CPC112315M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC001897 - Distributor assembly switch
ETIM 10EC001897 - Distributor assembly switch
eClassV11.0 : 27400611
Object Classification CodeU
StandardsDIN EN 61439-3
DIN EN 61439-2
