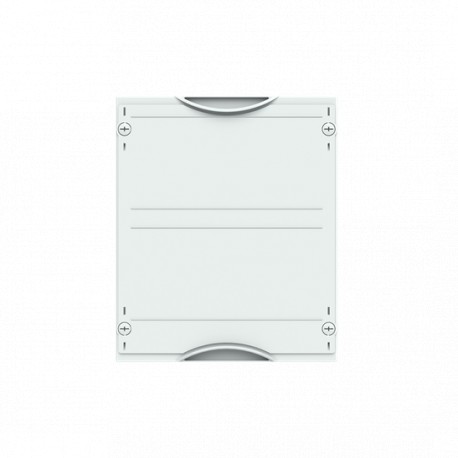

2CPX041803R9999 ABB MBA160ALA OT Kit 160A, H300xA250, 2Hx1A
2CPX041803R9999
041803
ABB
1 Pcs.
MBA160ALA OT Kit 160A, H300xA250, 2Hx1A
Switch disconnector OT not connected 300 mm x 250 mm x 200 mm , 000
Automation > Distributor assembly switch
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Rated Operational Current (Ie) | 160 A |
| Number of Poles | 4P |
| Number of Switches | 0 |
| Number of Mountable Devices | 1 |
| Enclosure Module Equipment | Excludes Devices |
| Enclosure Mounting Frame | WR or EDF |
| Device | OT160G |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 000 |
| DIN Place Units | 24 |
| Meter Boards | 0 |
| Module Function | Switch disconnector OT not connected |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Current (In) | 160 A |
| Design | |
| Color | Light grey |
| Number of Modules | 24 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 250 mm |
| Product Net Height | 300 mm |
| Product Net Depth / Length | 200 mm |
| Product Net Weight | 0.69 kg |
| Section Width | 1 |
| Built-In Depth (t2) | 200 mm |
| Engineering | |
| EPLAN Data | 9AAF623206_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.69 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112314M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001897 - Distributor assembly switch |
| ETIM 10 | EC001897 - Distributor assembly switch |
| eClass | V11.0 : 27400611 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 300 mm |
| Width (EF000008) | 250 mm |
| Depth (EF000049) | 200 mm |
| With cover (EF000361) | Yes |
| Plastic cover plate (EF001238) | Yes |
| Number of poles (EF001391) | 4 |
| Suitable for switch disconnector (EF007252) | Yes |
| Equipped with switch disconnector (EF007957) | No |
| Suitable for power circuit breaker (EF005863) | No |
| Equipped with power circuit-breaker (EF007958) | No |
| Suitable for no-voltage switch (EF007783) | No |
| Equipped with no-voltage switch (EF007964) | No |
| Suitable for reverser (EF007787) | No |
| Equipped with reverser (EF007974) | No |
| Rated operation current (EF007679) | 160 A |
| Number of switches (EF005586) | 0 |
| With auxiliary terminal (EF003774) | No |
