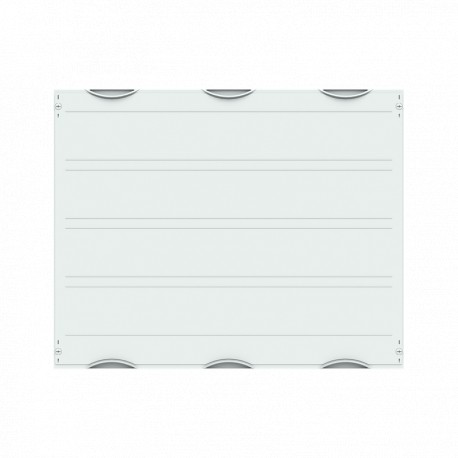

2CPX041733R9999 ABB MBB319 Panel Kit H600xA750, 4Hx3A
2CPX041733R9999
041733
ABB
1 Pcs.
Automation > Distributor assembly with protection against contact
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB part number 2CPX041733R9999 is a panel kit interior fitting module utilized to organize modular distribution devices inside industrial enclosures. Such modules facilitate clean interior layouts and protect technicians through integrated touch guards. Pricing, stock availability, and lead times are confirmed per enquiry through an RFQ.
- Enclosure Mounting Frame: WR or EDF
- Enclosure Type: Interior fitting module
- Enclosure Type of Height: 0
- DIN Place Units: 144
- Meter Boards: 0
- Module Function: touch guard
- Cover Color: Grey
- Rated Operational Voltage: Maximum 400 V
- Operational Voltage: 400 V
- Color: Light grey
- Number of Modules: 144
- RoHS Declaration: 2CPC100019X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20240903
- REACH Declaration: 2CPC100005X0201
- REACH Information: False - does not contain substances > 0.1 mass percentage
More info
▲| Technical | |
|---|---|
| Enclosure Mounting Frame | WR or EDF |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 0 |
| DIN Place Units | 144 |
| Meter Boards | 0 |
| Module Function | touch guard |
| Cover Color | Grey |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Design | |
| Color | Light grey |
| Number of Modules | 144 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 750 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 2.69 kg |
| Section Width | 3 |
| Built-In Depth (t2) | 120 mm |
| Engineering | |
| EPLAN Data | 9AAF623199_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 2.69 kg |
| E-Number (Norway) | 2407831 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112192M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001892 - Distributor assembly with protection against contact |
| ETIM 10 | EC001892 - Distributor assembly contact protection |
| eClass | V11.0 : 27400615 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
