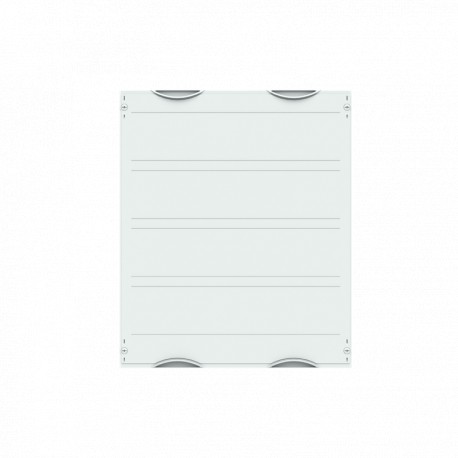

ABB 2CPX041732R9999 2CPX041732R9999 ABB MBB219 Panel Kit H600xA500, 4Hx2A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CPX041732R9999 ABB MBB219 Panel Kit H600xA500, 4Hx2A

2CPX041732R9999

041732

ABB

1 Pcs.

MBB219 Panel Kit H600xA500, 4Hx2A touch guard 600 mm x 500 mm x 120 mm , 0

Automation > Distributor assembly with protection against contact
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB MBB219 Panel Kit H600xA500, 4Hx2A is an interior fitting module utilized in modular distribution boards to support organized device placement and safe panel building. Such structural kits provide standardized mounting foundations and touch-safe covers for industrial electrical systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Enclosure Mounting Frame: WR or EDF
  • Enclosure Type: Interior fitting module
  • Enclosure Type of Height: 0
  • DIN Place Units: 96
  • Meter Boards: 0
  • Module Function: touch guard
  • Cover Color: Grey
  • Rated Operational Voltage: Maximum 400 V
  • Operational Voltage: 400 V
  • Color: Light grey
  • Number of Modules: 96
  • RoHS Declaration: 2CPC100019X0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20240903
  • REACH Declaration: 2CPC100005X0201
  • REACH Information: False - does not contain substances > 0.1 mass percentage

More info

▲
Technical
Enclosure Mounting FrameWR or EDF
Enclosure TypeInterior fitting module
Enclosure Type of Height0
DIN Place Units96
Meter Boards0
Module Functiontouch guard
Cover ColorGrey
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Design
ColorLight grey
Number of Modules96
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width500 mm
Product Net Height600 mm
Product Net Depth / Length120 mm
Product Net Weight2 kg
Section Width2
Built-In Depth (t2)120 mm
Engineering
EPLAN Data9AAF623199_EPLAN
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight2 kg
E-Number (Norway)2444435
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Instructions and Manuals2CPC112192M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC001892 - Distributor assembly with protection against contact
ETIM 10EC001892 - Distributor assembly contact protection
eClassV11.0 : 27400615
Object Classification CodeU
StandardsDIN EN 61439-3
DIN EN 61439-2
