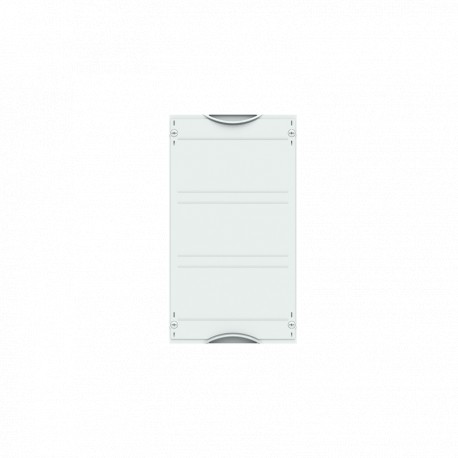

2CPX041728R9999 ABB MBB118 Panel Kit H450xA250, 3Hx1A
2CPX041728R9999
041728
ABB
1 Pcs.
Automation > Distributor assembly with protection against contact
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB component 2CPX041728R9999 is a panel kit configured as an interior fitting module to organize distribution boards and modular devices safely. Panel kits provide structured modular mounting layouts and touch-safe barriers for electrical distribution panels. Pricing, stock availability, and lead times are verified upon request via an RFQ.
- Enclosure Mounting Frame: WR or EDF
- Enclosure Type: Interior fitting module
- Enclosure Type of Height: 00
- Meter Type: "
- DIN Place Units: 36
- Meter Boards: 0
- Module Function: touch guard
- Cover Color: Grey
- Rated Operational Voltage: Maximum 400 V
- Operational Voltage: 400 V
- Rated Insulation Voltage (U i ): 690 V
- Rated Impulse Withstand Voltage (U imp ): 6 kV
- Color: Light grey
- Number of Modules: 36
- RoHS Declaration: 2CPC100019X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
More info
▲| Technical | |
|---|---|
| Enclosure Mounting Frame | WR or EDF |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 00 |
| Meter Type | " |
| DIN Place Units | 36 |
| Meter Boards | 0 |
| Module Function | touch guard |
| Cover Color | Grey |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Design | |
| Color | Light grey |
| Number of Modules | 36 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 250 mm |
| Product Net Height | 450 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.65 kg |
| Section Width | 1 |
| Built-In Depth (t2) | 120 mm |
| Engineering | |
| EPLAN Data | 9AAF623199_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.65 kg |
| E-Number (Norway) | 2444432 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112192M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001892 - Distributor assembly with protection against contact |
| ETIM 10 | EC001892 - Distributor assembly contact protection |
| eClass | V11.0 : 27400615 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
