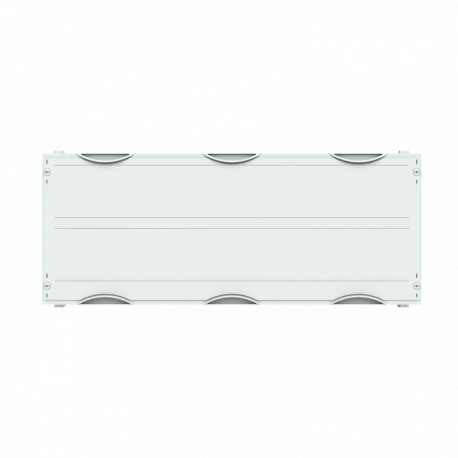

2CPX041727R9999 ABB MBB317 Panel Kit H300xA750, 2Hx3A
2CPX041727R9999
041727
ABB
1 Pcs.
Automation > Distributor assembly with protection against contact
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB part number 2CPX041727R9999 is a panel kit interior fitting module used to organize internal components and establish secure modular layouts in enclosures. These modules support clean electrical organization and safe touch protection inside industrial panels. Pricing, availability, and lead times are confirmed per enquiry through an RFQ.
- Enclosure Mounting Frame: WR or EDF
- Enclosure Type: Interior fitting module
- Enclosure Type of Height: 000
- Meter Type: "
- DIN Place Units: 72
- Meter Boards: 0
- Module Function: touch guard
- Cover Color: Grey
- Rated Operational Voltage: Maximum 400 V
- Operational Voltage: 400 V
- Rated Insulation Voltage (U i ): 690 V
- Rated Impulse Withstand Voltage (U imp ): 6 kV
- Color: Light grey
- Number of Modules: 72
- RoHS Declaration: 2CPC100019X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
More info
▲| Technical | |
|---|---|
| Enclosure Mounting Frame | WR or EDF |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 000 |
| Meter Type | " |
| DIN Place Units | 72 |
| Meter Boards | 0 |
| Module Function | touch guard |
| Cover Color | Grey |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Design | |
| Color | Light grey |
| Number of Modules | 72 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 750 mm |
| Product Net Height | 300 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 1.673 kg |
| Section Width | 3 |
| Built-In Depth (t2) | 120 mm |
| Engineering | |
| EPLAN Data | 9AAF623199_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 1.74 kg |
| E-Number (Norway) | 2407829 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112192M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001892 - Distributor assembly with protection against contact |
| ETIM 10 | EC001892 - Distributor assembly contact protection |
| eClass | V11.0 : 27400615 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
