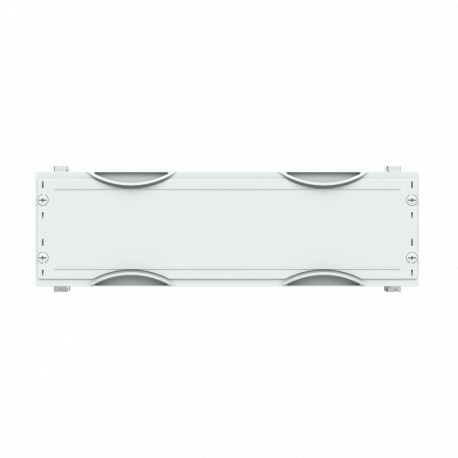

2CPX041723R9999 ABB MBB216 Panel Kit H150xA500, 1Hx2A
2CPX041723R9999
041723
ABB
1 Pcs.
MBB216 Panel Kit H150xA500, 1Hx2A
touch guard 150 mm x 500 mm x 120 mm , 0000 , 2
Automation > Distributor assembly with protection against contact
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB MBB216 Panel Kit H150xA500, 1Hx2A is an interior fitting module used in electrical enclosures to mount modular devices safely while shielding live parts from accidental contact. Such kits streamline internal busbar and component layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Enclosure Mounting Frame: WR or EDF
- Enclosure Type: Interior fitting module
- Enclosure Type of Height: 0000
- Meter Type:
- DIN Place Units: 24
- Meter Boards: 0
- Module Function: touch guard
- Cover Color: Grey
- Rated Operational Voltage: Maximum 400 V
- Operational Voltage: 400 V
- Rated Insulation Voltage (U i ): 690 V
- Rated Impulse Withstand Voltage (U imp ): 6 kV
- Color: Light grey
- Number of Modules: 24
- RoHS Declaration: 2CPC100019X0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
More info
▲| Technical | |
|---|---|
| Enclosure Mounting Frame | WR or EDF |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 0000 |
| Meter Type | " |
| DIN Place Units | 24 |
| Meter Boards | 0 |
| Module Function | touch guard |
| Cover Color | Grey |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Design | |
| Color | Light grey |
| Number of Modules | 24 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 500 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.42 kg |
| Section Width | 2 |
| Built-In Depth (t2) | 120 mm |
| Engineering | |
| EPLAN Data | 9AAF623199_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.42 kg |
| E-Number (Norway) | 2444429 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112192M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001892 - Distributor assembly with protection against contact |
| ETIM 10 | EC001892 - Distributor assembly contact protection |
| eClass | V11.0 : 27400615 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
