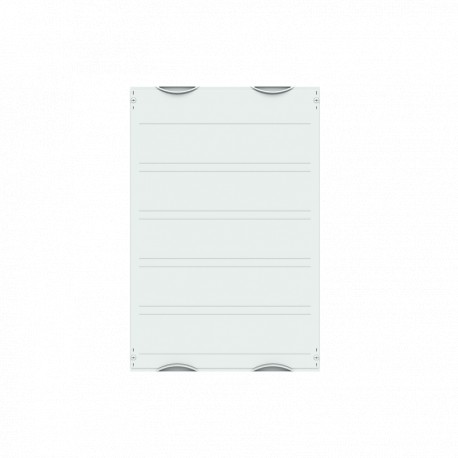

2CPX041703R9999 ABB MBK210 Kit for terminal blocks, H750xA500, 5Hx2A
2CPX041703R9999
041703
ABB
1 Pcs.
Automation > Distributor assembly terminal blocks
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Kit for terminal blocks hardware like the Abb 2CPX041703R9999 ABB MBK210 Kit for terminal blocks, H750xA500, 5Hx2A provide the modular mechanical backing needed to mount terminal arrays securely within enclosure structures. They ensure structured and accessible wiring layouts for complex industrial installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Rows: 5
- Enclosure Mounting Frame: WR or EDF
- Enclosure Type: Interior fitting module
- Enclosure Type of Height: 1
- Meter Type:
- DIN Place Units: 120
- Meter Boards: 0
- Module Function: DIN rail for terminals horizontal
- Rated Operational Voltage: Maximum 400 V
- Operational Voltage: 400 V
- Rated Insulation Voltage (U i ): 690 V
- Rated Impulse Withstand Voltage (U imp ): 6 kV
- Rated Current (I n ): 850 A
- Color: Light grey
- Number of Modules: 120
- RoHS Declaration: 2CPC100019X0201
More info
▲| Technical | |
|---|---|
| Number of Rows | 5 |
| Enclosure Mounting Frame | WR or EDF |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 1 |
| Meter Type | " |
| DIN Place Units | 120 |
| Meter Boards | 0 |
| Module Function | DIN rail for terminals horizontal |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Current (In) | 850 A |
| Design | |
| Color | Light grey |
| Number of Modules | 120 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 114f4144-efc4-474d-b9a6-6bc82d04c40b Germany |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Protection Class | Grounded or Insulated (Class III) |
| Dimensions | |
| Product Net Width | 500 mm |
| Product Net Height | 750 mm |
| Product Net Depth / Length | 200 mm |
| Product Net Weight | 4.662 kg |
| Section Width | 2 |
| Built-In Depth (t2) | 200 mm |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 5.17 kg |
| E-Number (Norway) | 2407843 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112206M5601 |
| Mounting Type | Stepless adjustable via mounting bracket |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001894 - Distributor assembly terminal blocks |
| ETIM 10 | EC001894 - Distributor assembly terminal blocks |
| eClass | V11.0 : 27400609 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
