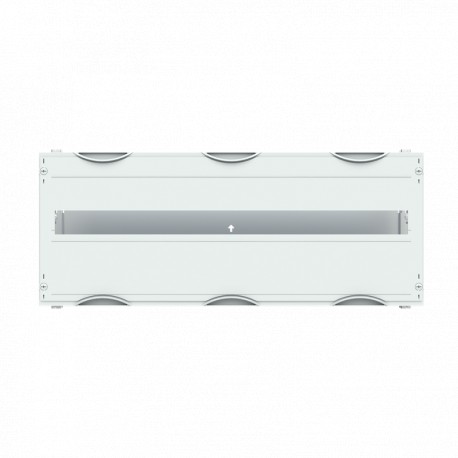

2CPX041645R9999 ABB MBA390T Tmax T1-T3 Kit, H300xA750, 2Hx3A
2CPX041645R9999
041645
ABB
1 Pcs.
Automation > Distributor assembly switch
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An MBA390T Tmax T1-T3 Kit, H300xA750, 2Hx3A is an interior module framework utilized in modular distribution boards for housing multiple circuit protective devices. Produced by Abb with part number 2CPX041645R9999, it provides the structural interface required to mount electrical breakers cleanly inside industrial enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated Operational Current (I e ): 250 A
- Number of Poles: 4P
- Number of Switches: 0
- Enclosure Module Equipment: Excludes Devices
- Enclosure Mounting Frame: WR
- Device: XT1, XT3
- Enclosure Type: Interior fitting module
- Enclosure Type of Height: 000
- Meter Type: "
- DIN Place Units: 72
- Meter Boards: 0
- Module Function: Main circuit breaker Tmax
- Rated Operational Voltage: Maximum 400 V
- Operational Voltage: 400 V
- Rated Insulation Voltage (U i ): 690 V
- Rated Impulse Withstand Voltage (U imp ): 6 kV
More info
▲| Technical | |
|---|---|
| Rated Operational Current (Ie) | 250 A |
| Number of Poles | 4P |
| Number of Switches | 0 |
| Enclosure Module Equipment | Excludes Devices |
| Enclosure Mounting Frame | WR |
| Device | XT1, XT3 |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 000 |
| Meter Type | " |
| DIN Place Units | 72 |
| Meter Boards | 0 |
| Module Function | Main circuit breaker Tmax |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Current (In) | 250 A |
| Design | |
| Color | Light grey |
| Number of Modules | 72 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 750 mm |
| Product Net Height | 300 mm |
| Product Net Depth / Length | 275 mm |
| Product Net Weight | 2.84 kg |
| Section Width | 3 |
| Built-In Depth (t2) | 275 mm |
| Engineering | |
| EPLAN Data | 9AAF623206_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 2.84 kg |
| E-Number (Norway) | 2437750 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112309M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001897 - Distributor assembly switch |
| ETIM 10 | EC001897 - Distributor assembly switch |
| eClass | V11.0 : 27400611 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
